Product Summary

The E36SR05015NRFA is an Eighth Brick, 18~75V input, single output, isolated DC/DC converter. The E36SR05015NRFA provides up to 66 watts of power or 20A of output current in an industry standard footprint. With creative design technology and optimization of component placement, the E36SR05015NRFA possess outstanding electrical and thermal performances, as well as extremely high reliability under highly stressful operating conditions. The E36SR05015NRFA is fully protected from abnormal input/output voltage, current, and temperature conditions. The applications of the E36SR05015NRFA include Telecom/Datacom, Wireless Networks, Optical Network Equipment, Server and Data Storage and Industrial/Testing Equipment.

Parametrics

E36SR05015NRFA absolute maximum ratings: (1)input Voltage, Continuous: 18Vdc min, 24/48Vdc typ, 75Vdc max; Transient: 100 Vdc max; (2)Operating Temperature: -40 to 122℃; (3)Storage Temperature, -55 to 125℃; (4)Input/Output Isolation Voltage: 2250Vdc

Features

E36SR05015NRFA features: (1)High efficiency: 88% @ 3.3V/ 20A; (2)Size: 58.4mm x 22.8mm x 9.2mm; (3)Industry standard pin out; (4)Fixed frequency operation; (5)Input UVLO, Output OCP, OVP, and OTP 2250V isolation; (6)Basic insulation; (7)No minimum load required; (8)SMD and through-hole versions; (9)ISO 9001, TL 9000, ISO 14001, QS 900 OHSAS 18001 certified manufacturing facility; (10)UL/cUL 60950 (US & Canada) recognized, and TUV (EN60950)- pending; (11)CE mark meets 73/23/EEC and 93/68/EEC-pending.

Diagrams

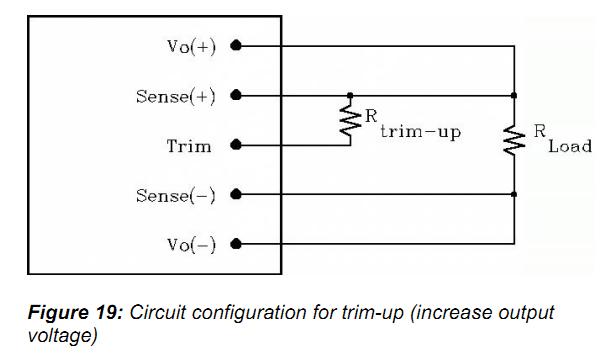

E36SR05015NRFA Circuit configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

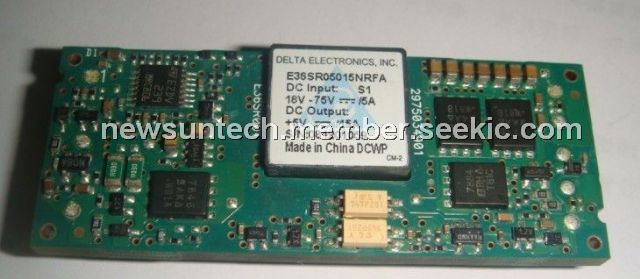

E36SR05015NRFA
E36SR05015NRFA

MODULE DC/DC 8TH BRICK 5V 15A
Data Sheet
0-1: $33.60
1-10: $31.20
10-50: $29.76
50-100: $27.84
100-250: $25.54
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

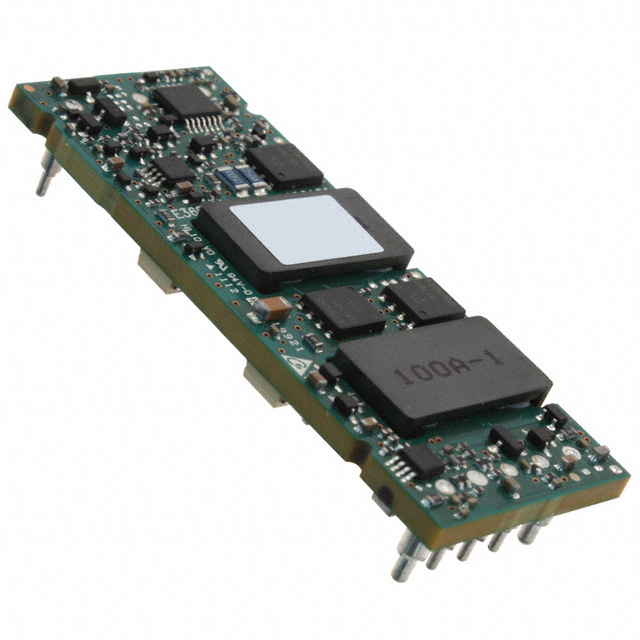

E36SC12009NRFA
E36SC12009NRFA

DC/DC CONVERTER 108W 12V 9A
Data Sheet
0-1: $38.03
1-10: $35.31
10-25: $34.77
25-50: $33.68
50-100: $31.51
100-250: $28.90
E36SR05015NRFA
E36SR05015NRFA

MODULE DC/DC 8TH BRICK 5V 15A
Data Sheet
0-1: $33.60
1-10: $31.20
10-50: $29.76
50-100: $27.84
100-250: $25.54
E36SR12004NKFA
E36SR12004NKFA

MODULE DC/DC 8TH BRICK 12V 4A
Data Sheet
0-1: $33.91
1-10: $31.48
10-50: $30.03
50-100: $28.09
100-250: $25.77
E36SR3R320NRFA
E36SR3R320NRFA

MODULE DC/DC 8TH BRICK 3.3V 20A
Data Sheet
0-1: $33.60
1-10: $31.20
10-50: $29.76
50-100: $27.84
100-250: $25.54
E36SR3R320NRFH
E36SR3R320NRFH

MODULE DC/DC 8TH BRICK 3.3V 20A
Data Sheet
0-1: $39.66
1-10: $36.83
10-50: $35.13
50-100: $32.86
100-250: $30.14
