Product Summary

The EL4583CS is a sync separator, 50% slice, S-H filter. The EL4583C extracts timing from video sync in NTSC, PAL, and SECAM systems, and non standard formats, or from computer graph-ics operating at higher scan rates.The EL4583C sync slice level is set to the mid-point between sync tip and the blanking level. Applications of the include: Video special effect, Video test equipmen, Video distribution, Multimedia, Displays, Imaging, Video data capture and Video triggers.

Parametrics

EL4583CS absolute maximum ratings: (1) VCC Supply: 7V; (2) Storage Temperature: -65°C to +150°C; (3) Pin Voltages: -0.5V to VCC +0.5V; (4) Operating Temperature Range: -40°C to +85°C; (5) Die Junction Temperature: 150°C.

Features

EL4583CS features: (1) NTSC, PAL, and SECAM sync separation; (2) Single supply, +5V operation; (3) Precision 50% slicing; (4) Built-in programmable color burst filter; (5) Decodes non-standard vertical; (6) Horizontal sync output; (7) Low-power CMOS; (8) Detects loss of signal; (9) Resistor programmable scan rate; (10) Few external components; (11) Available in 16-pin PDIP and 16-pin SO (0.150 inch) packages.

Diagrams

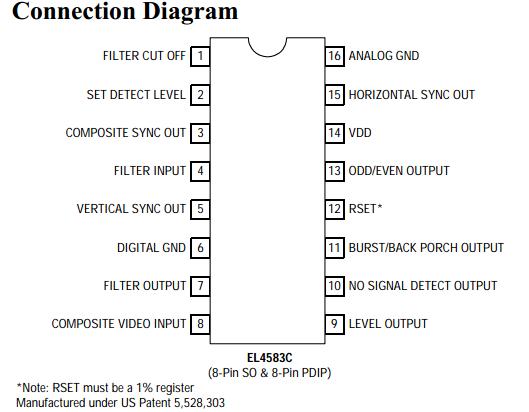

EL4583CS Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EL4583CS
EL4583CS

IC VIDEO SYNC SEPARATOR 16-SOIC
Data Sheet
Negotiable
EL4583CS-T13
EL4583CS-T13

IC SYNC SEPARATOR S-H 50% 16SOIC
Data Sheet
Negotiable
EL4583CSZ
EL4583CSZ
Intersil
Video ICs EL4583CSZ SYNC SEP BROADCAST QLTY
Data Sheet
0-1: $5.86
1-25: $4.98
25-100: $4.10
100-250: $3.72
EL4583CSZ-T13
EL4583CSZ-T13
Intersil
Video ICs EL4583CSZ SYNC SEP BROADCAST QLTY
Data Sheet
0-1296: $4.98
1296-2500: $3.22
EL4583CSZ-T7
EL4583CSZ-T7
Intersil
Video ICs EL4583CSZ SYNC SEP BROADCAST QLTY
Data Sheet
0-519: $4.98
519-1000: $3.22
EL4583CS-T7
EL4583CS-T7

IC VIDEO SYNC SEPARATOR 16-SOIC
Data Sheet
Negotiable
