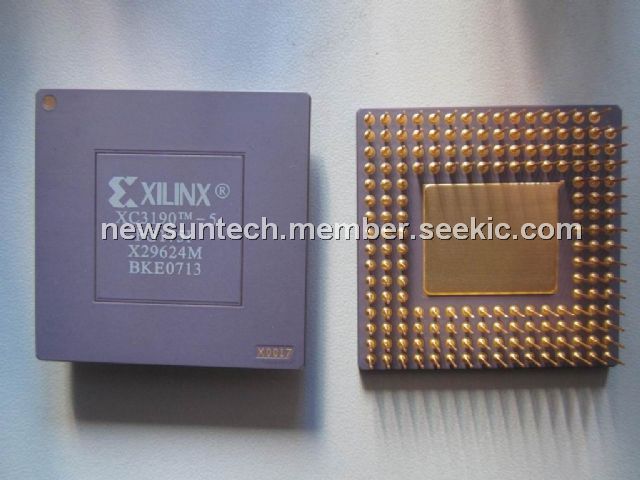

XC3190-5PG175I

Product Summary

The XC3190-5PG175I is a Logic Cell Array (LCA). The XC3190-5PG175I provides a group of high-performance, high-density, digital integrated circuits. Their regular, extendable, flexible, user-programmable array architecture is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs), a core array of Configurable Logic Bocks (CLBs) and resources for interconnection. The XC3190-5PG175I XACT development system provides schematic capture and auto place-and-route for design entry. Logic and timing simulation, and in-circuit emulation are available as design verification alternatives. The design editor is used for interactive design optimization, and to compile the data pattern that represents the configuration program.

Parametrics

XC3190-5PG175I absolute maximum ratings: (1)VCC, Supply voltage relative to GND: –0.5 to +7.0 V; (2)VIN, Input voltage with respect to GND: –0.5 to VCC +0.5 V; (3)VTS, Voltage applied to 3-state output: –0.5 to VCC +0.5 V; (4)TSTG, Storage temperature (ambient): –65 to +150℃; (5)TSOL, Maximum soldering temperature (10 s @ 1/16 in.): +260℃; (6)Junction temperature plastic: +125℃; (7)TJ, Junction temperature ceramic: +150℃.

Features

XC3190-5PG175I features: (1)Complete line of five related Field Programmable Gate Array product; (2)Ideal for a wide range of custom VLSI design tasks; (3)Replaces TTL, MSI, and other PLD logic; (4)Integrates complete sub-systems into a single package; (5)Avoids the NRE, time delay, and risk of conventional masked gate arrays; (6)High-performance CMOS static memory technology; (7)Guaranteed toggle rates of 70 to 325 MHz, logic delays from 9 to 2.2 ns; (8)System clock speeds over 80 MHz; (9)Low quiescent and active power consumption; (10)Flexible FPGA architecture; (11)Compatible arrays ranging from 1,000 to 7,500 gate complexity; (12)Extensive register, combinatorial, and I/O capabilities; (13)High fan-out signal distribution, low-skew clock nets; (14)Internal 3-state bus capabilities; (15)TTL or CMOS input thresholds; (16)On-chip crystal oscillator amplifier; (17)Unlimited reprogrammability.

Diagrams
