Product Summary

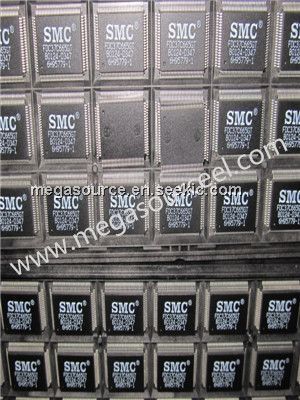

The FDC37C665GT is an advanced high performance Multi-Mode Parallel Port Super I/O Floppy Disk Controller. The FDC37C665GT is optimized for motherboard applications while the FDC37C666GT is oriented towards controller card applications. The FDC37C665GT does not require any external filter components and is,therefore, easy to use and offer lower system cost and reduced board area.
Parametrics
FDC37C665GT absolute maximum ratings: (1) Operating Temperature Range: 0 to +70 ℃; (2) Storage Temperature Range: -55 to +150℃; (3) Lead Temperature Range (soldering, 10 seconds) : +325℃; (4) Positive Voltage on any pin, with respect to Ground: Vcc +0.3V; (5) Negative Voltage on any pin, with respect to Ground: -0.3V; (6) Maximum Vcc: +7V.
Features
FDC37C665GT features: (1) 5 Volt Operation; (2) Floppy Disk Available on Parallel Port Pins; (3) 2.88MB Super I/O Floppy Disk Controller; (4) Enhanced Digital Data Separator; (5) Multi-Mode Parallel Port with ChiProtect Circuitry; (6) ISA Host Interface.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDC37C665GT |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
FDC37C665GT-MS |
SMSC |
I/O Controller Interface IC Super I/O Controller- Pb Free |
Data Sheet |
Negotiable |
|
||||
|
FDC37C665GTQFP |
SMSC |
I/O Controller Interface IC Super I/O Controller |
Data Sheet |
Negotiable |
|
||||
