Product Summary
The FQD11P06TM P-Channel enhancement mode power field effect transistor is produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand a high energy pulse in the avalanche and commutation modes. The FQD11P06TM is well suited for low voltage applications such as automotive, DC/DC converters, and high efficiency switching for power management in portable and battery operated products.
Parametrics
FQD11P06TM absolute maximum ratings: (1)Drain-Source Voltage: -60 V; (2)Drain Current: Continuous (TC = 25℃): -9.4 A, Continuous (TC = 100℃): -5.95 A; (3)Drain Current - Pulsed: -37.6 A; (4)Gate-Source Voltage: ± 30 V; (5)Single Pulsed Avalanche Energy: 160 mJ; (6)Avalanche Current: -9.4 A; (7)Repetitive Avalanche Energy: 3.8 mJ; (8)Peak Diode Recovery dv/dt: -7.0 V/ns; (9)Power Dissipation (TA = 25℃): 2.5 W; (10)Power Dissipation (TC = 25℃): 38 W, Derate above 25℃: 0.3 W/℃; (11)Operating and Storage Temperature Range: -55 to +150 ℃.
Features
FQD11P06TM features: (1)-9.4A, -60V, RDS(on) = 0.185Ω @VGS = -10 V; (2)Low gate charge ( typical 13 nC); (3)Low Crss ( typical 45 pF); (4)Fast switching; (5)100% avalanche tested; (6)Improved dv/dt capability.

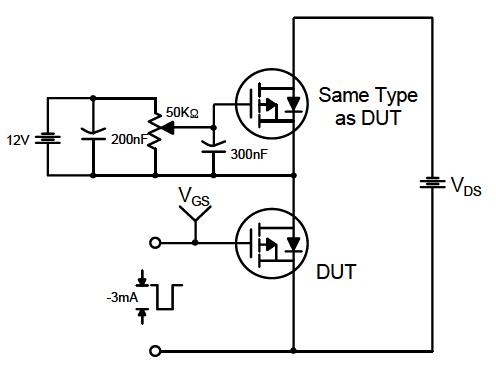

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() FQD11P06TM |
![]() Fairchild Semiconductor |
![]() MOSFET TO-252 DPAK P-CH 60V |
![]() Data Sheet |
![]()
|
|
||||||||||||
