Product Summary

The FSA266K8X is an ultra high-speed (UHS) dual single-pole/single-throw (SPST) analog switch. The device is fabricated with advanced sub-micron CMOS technology to achieve high speed enable and disable times and low On Resistance over a broad VCC range. The FSA266K8X is specified to operate over the 1.65 to 5.5V VCC operating range. The device is organized as a dual switch with independent CMOS compatible switch enable (OE) controls.

Parametrics

FSA266K8X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Switch Voltage (VS): -0.5V to VCC+0.5V; (3)DC Input Voltage (VIN): -0.5V to +7.0V; (4)DC Input Diode Current @ (IIK) VIN < 0V: -50 mA; (5)DC Switch Output Current (IOUT): ±128 mA; (6)DC VCC or Ground Current (ICC/IGND): ±100 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Junction Lead Temperature under Bias (TJ): +150℃; (9)Junction Lead Temperature (TL) (Soldering, 10 Seconds): +260℃; (10)Power Dissipation (PD) @ +85℃: 250 mW.

Features

FSA266K8X features: (1)Useful in both analog and digital applications; (2)Space saving US8 surface mount package; (3)MicroPak Pb-Free leadless package; (4)Typical 7Ω On Resistance @ 5V VCC; (5)Broad VCC operating range: 1.65V to 5.5V; (6)Rail-to-Rail signal handling; (7)Power down high impedance control inputs; (8)Control inputs are overvoltage tolerant; (9)Control inputs are CMOS compatible; (10)>300 MHz-3dB bandwidth.

Diagrams

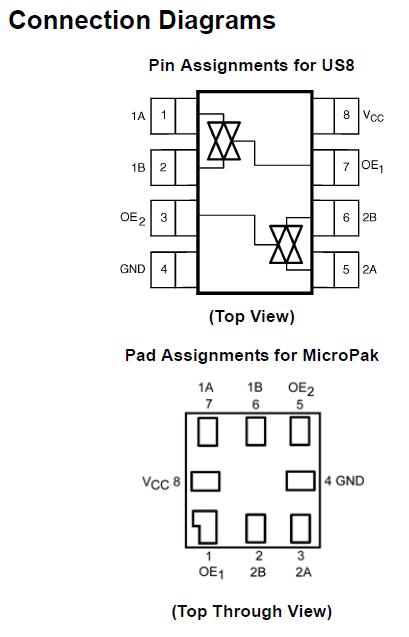

FSA266K8X connection diagram
