Product Summary

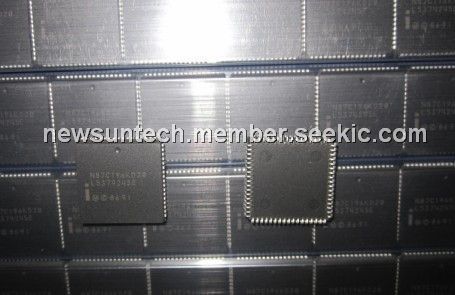

The N87C196KD20 is a 16-bit high performance CHMOS micro-controller.
Parametrics
N87C196KD20 absolute maximum ratings: (1)Ambient Temperature Under Bias: 0℃ to a125℃; (2)Storage Temperature: 65℃ to a150℃; (3)Voltage On Any Pin to VSS Except EA and VPP: 0.5V to a7.0V; (4)Voltage from EA or VPP to VSS: 0.5V to 13.0V; (5)Power Dissipation: 0.43W.
Features
N87C196KD20 features: (1)32 Kbytes of On-Chip EPROM; (2)232 Byte Register File; (3)768 Bytes of Additional RAM; (4)Register-to-Register Architecture; (5)28 Interrupt Sources/16 Vectors; (6)Peripheral Transaction Server; (7)1.75 ms 16 x 16 Multiply (16 MHz); (8)3.0 ms 32/16 Divide (16 MHz); (9)Powerdown and Idle Modes; (10)Five 8-Bit I/O Ports; (11)16-Bit Watchdog Timer; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)3 Pulse-Width-Modulated Outputs; (18)Four 16-Bit Software Timers; (19)8- or 10-Bit 8-Channel A/D Converter with Sample/Hold; (20)HOLD/HLDA Bus Protocol; (21)OTP One-Time Programmable and QROM Versions; (22)Available in 12 MHz and 16 MHz Versions; (23)16 MHz Operation.

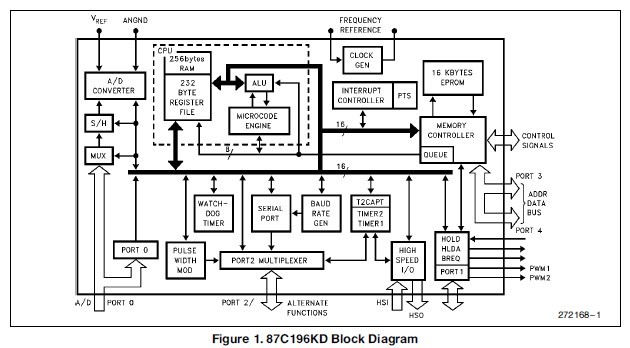

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 N87C196KD20 |
|
IC MCU 16-BIT 5V 32K OTP 68-PLCC |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
N87C196KB16 |
|
IC MCU 16-BIT 5V 8K OTP 68-PLCC |
Data Sheet |
Negotiable |
|
||||
|
N87C196KC20 |
|
IC MCU 16BIT 5V 16K OTP 68PLCC |
Data Sheet |
Negotiable |
|
||||
|
N87C196KD |
|
IC MCU 16-BIT 5V 32K OTP 68-PLCC |
Data Sheet |
Negotiable |
|
||||
|
N87C196KD20 |
|
IC MCU 16-BIT 5V 32K OTP 68-PLCC |
Data Sheet |
Negotiable |
|
||||
|
N87C196MC |
|
IC MCU 16BIT 5V 16K OTP 84-PLCC |
Data Sheet |
Negotiable |
|
||||
|
N87C196MD |
|
IC MCU 16-BIT 5V 16K OTP 84-PLCC |
Data Sheet |
Negotiable |
|
||||
