Product Summary
The H21LOI is a P-Channel MOSFET from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit provides the designer with an extremely efficient device for use in battery and load management applications.
Parametrics
H21LOI absolute maximum ratings: (1)Operating Temperature TOPR: -40 to +85 ℃; (2)Storage Temperature TSTG: -40 to +85 ℃; (3)Continuous Forward Current IF: 50 mA; (4)Reverse Voltage VR: 6V; (5)Power Dissipation PD 100 mW.
Features
H21LOI features: (1)Low cost; (2)0.035" apertures; (3)Black plastic opaque housing; (4)Mounting tabs on housing; (5)Choice of inverter or buffer output functions; (6)Choice of open-collector or totem-pole output configuration; (7)TTL/CMOS compatible output functions.

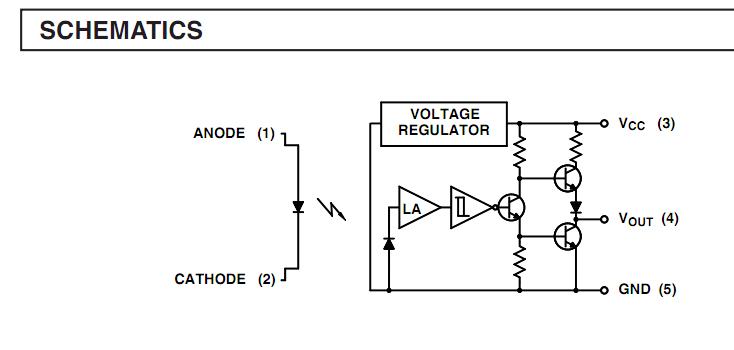

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
H21LOI |
Fairchild Semiconductor |
Optical Switches, Transmissive, with Photo IC Output INTERUP OPTOLOGIC |
Data Sheet |
Negotiable |
|
|||||
H21LOI_Q |
Fairchild Semiconductor |
Optical Switches, Transmissive, with Photo IC Output INTERUP OPTOLOGIC |
Data Sheet |
Negotiable |
|
