Product Summary

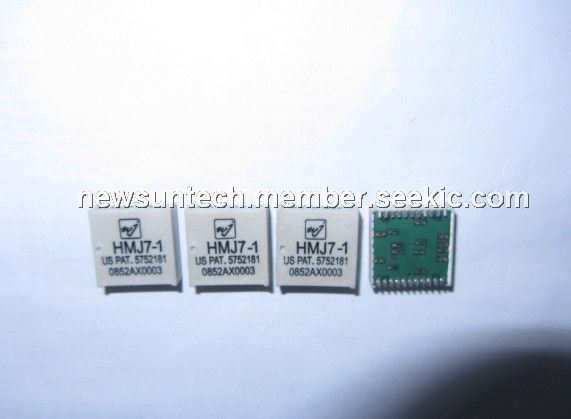

The HMJ7-1 is a high dynamic range GaAs FET mixer. This active broadband mixer realizes a typical third order intercept point of +34 dBm at an LO drive level of +21 dBm. The HMJ7-1 also provides excellent suppression of spurious intermodulation products, greater than 67 dBc, meeting DOCSIS2 and Euro DOCSIS system requirements. The HMJ7-1 is a specially screened version of the HMJ7 mixer meeting all of the performance requirements of the HMJ7 with 21 dBm LO power, but also meeting the suppression requirements for intermodulation products at a 24 dBm LO power level. The application is CATV Head-End Equipment .
Parametrics
HMJ7-1 absolute maximum ratings: (1)Operating Case Temperature: -40 to +85℃; (2)Storage Temperature: -65 to +100℃; (3)Maximum Input Power: +25 dBm.
Features
HMJ7-1 features: (1)Greater than +34 dBm IIP3; (2)77 dBc 2×1 Spur Rejection in IF Band; (3)RF 1000 - 2000 MHz; (4)LO 1000 - 2000 MHz; (5)IF 10 - 1000 MHz; (6)+24 dBm LO Drive Level; (7)+5V Bias (40 mA); (8)SMT J-Lead Package.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
HMJ7-1 |
TriQuint Semiconductor |
Up-Down Converters 1000-2000MHz RF +34dBm IIP3 |
Data Sheet |
Negotiable |
|
|||||
HMJ7-1PCB |
TriQuint Semiconductor |
RF Development Tools 1000-2000MHz Brd Triple-balanced |
Data Sheet |
Negotiable |
|
