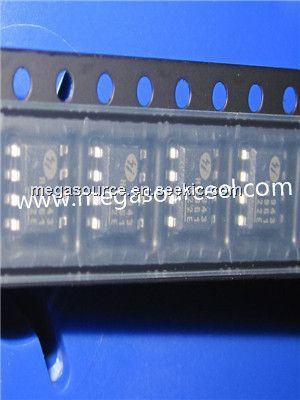

HV9961LG-G

HV9961LG-G, average current mode control LED driver IC, SOIC, -0.5V to +470V, 1000mW, Supertex, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.02~1.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	1.33 / Piece
2 ~ 1000 :	1.02 / Piece

PartNumber:: HV9961LG-G

Brand:: Supertex, Inc - Supertex | Pack: SOIC | D/C: 12+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-25

From Other Seller

Part Number:HV9961LG-G
US $1.02 - 1.33
Quantity:

piece

Product Summary

The HV9961 is an average current mode control LED driver IC operating in a constant off-time mode. Unlike HV9910B, this control IC does not produce a peak-to-average error, and therefore greatly improves accuracy, line and load regulation of the LED current without any need for loop compensation or high-side current sensing. The output LED current accuracy is ±3%. The applications of the include DC/DC or AC/DC LED driver applications, LED backlight driver for LCD displays, General purpose constant current source, LED signage and displays, Architectural and decorative LED lighting, LED street lighting.

Parametrics

HV9961LG-G absolute maximum ratings: (1)VIN to GND: -0.5V to +470V; (2)VDD to GND: 12V; (3)CS, LD, PWMD, GATE, RT to GND: -0.3V to (VDD +0.3V); (4)Junction temperature range: -40℃ to +150℃; (5)Storage temperature range: -65℃ to +150℃; (6)Continuous power dissipation (TA = +25℃), 8-Lead SOIC: 650mW; 16-Lead SOIC: 1000mW.

Features

HV9961LG-G features: (1)Fast average current control; (2)Programmable constant off-time switching; (3)Linear dimming input; (4)PWM dimming input; (5)Output short circuit protection with skip mode; (6)Ambient operating temperature -40℃ to +125℃; (7)Pin-compatible with the HV9910B.
