Product Summary

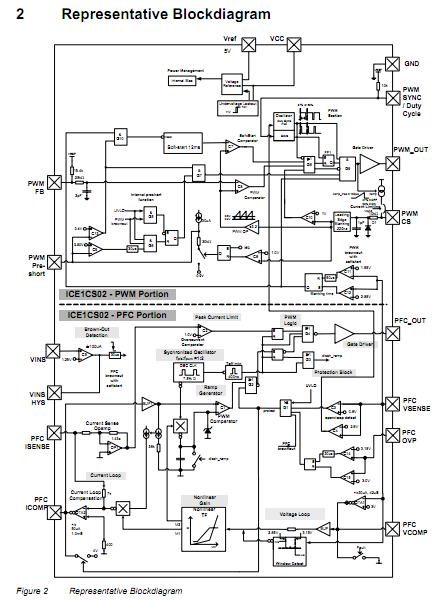

The ICE1CS02G is a Combi PFC/ PWM Controller. The ICE1CS02G comprises the complete control for power factor controlled switched mode power supplies. With its PFC and PWM section being internally synchronized, applies for off-line converters with input voltages ranging from 90 V to 270 V.

Parametrics

ICE1CS02G absolute maximum ratings: (1)VCC Supply Voltage VVCC: -0.3 to 26 V; (2)PWM FB Voltage VFB: -0.3 to 5.0 V; (3)PWM CS Voltage VCS: -0.3 to 5.0 V; (4)PWM SYNC Voltage VSYNC: -0.3 to 5.0 V; (5)PWM PRESHORT Voltage VPRESHORT: -0.3 to 5.0 V; (6)PFC VINS Voltage VVINS: -0.3 to 9.5 V; (7)PFC VINS Current IVINS: -1.0 to 35.0 μA; (8)PFC VINS_HYS Voltage VVINS_HYS: -0.3 to 5.0 V; (9)PFC ICOMP Voltage VICOMP: -0.3 to 5.0 V; (10)PFC OVP Voltage VOVP: -0.3 to 5.0 V; (11)PFC ISENSE Voltage VISENSE: -20 to 5.0 V; (12)PFC ISENSE Current IISENSE: -1.0 to 1.0 mA; (13)PFC VSENSE Voltage VVSENSE: -0.3 to 5.0 V; (14)PFC VSENSE Current IVSENSE: -1.0 to 1.0 mA ; (15)PFC VCOMP Voltage VVCOMP: -0.3 to 5.0 V.

Features

ICE1CS02G features: (1)Fast, soft switching totem pole gate drive (2 A); (2)Tolerance of Trimmed Reference Voltage ±2.5% (±2% at 25°C); (3)BiCMOS technology provides wide VCC Range.
