Product Summary
The INA154UA is a high slew rate, unity-gain difference amplifier consisting of a precision op amp with a precision resistor network. The INA154UA provides this circuit function without using an expensive precision resistor network. Applications of the INA154UA include: differential input amplifier, instrumentation amplifier building block, unity-gain inverting amplifier, summing amplifier, voltage-controlled current source and synchronous demodulator.
Parametrics
INA154UA absolute maximum ratings: (1) Supply Voltage, V+ to V-: 40V; (2) Input Voltage Range: ±80V; (3) Output Short Circuit (to ground) : Continuous; (4) Operating Temperature: -55° C to +125° C; (5) Storage Temperature: –55° C to +125° C; (6) Junction Temperature: +150° C; (7) Lead Temperature (soldering, 10s) : +300° C.
Features
INA154UA features: (1) designed for low cost; (2) low offset voltage: ±750 μV max; (3) low offset drift: ±2μV °C; (4) low gain error: ±0.05% max; (5) wide bandwidth: 3MHz; (6) high slew rate: 14/µs; (7) fast setting time: 3μVs to 0.01%; (8) wide supply range: ±4V to ±18V; (9) low quiescent current: 2.4mA; (10) SO-8 surface-mount package.

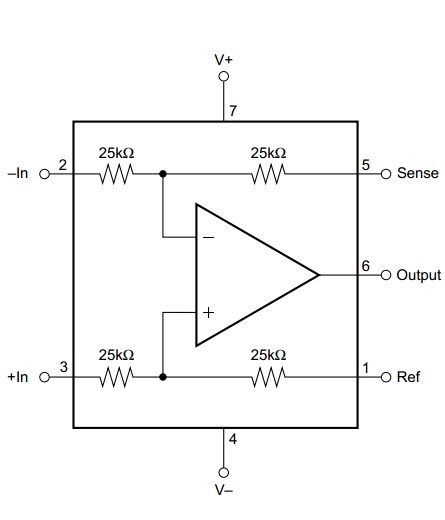

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 INA154UA |
Texas Instruments |
Differential Amplifiers Hi-Speed Precision |
Data Sheet |
|
|
||||||||||||
 |
INA154UA/2K5 |
|
IC OPAMP DIFF 3.1MHZ SGL 8SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
INA154UAG4 |
Texas Instruments |
Differential Amplifiers Hi-Speed Precision |
Data Sheet |
|
|
||||||||||||
