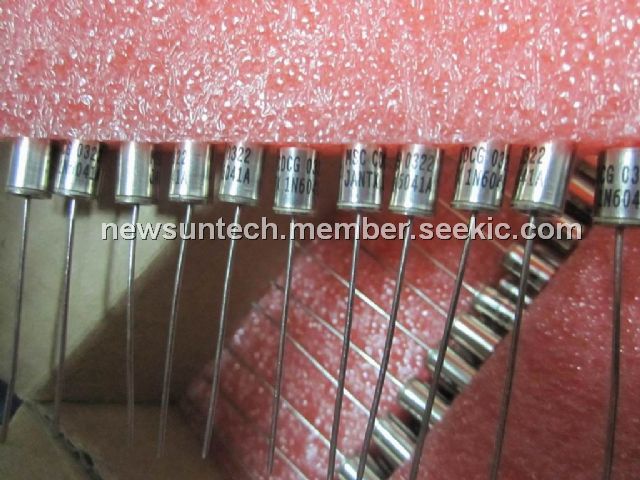

Product Summary

The JANTX1N6041 is a 1500 WATT bidiirectional transient voltage suppressor. The popular transient voltage suppressor JANTX1N6041 is JEDEC registered selection for bidirectional device. All have the same high peak pulse power rating of 1500 with extremely fast response times. It is also available in military qualified selections as described in the features section herein. The JANTX1N6041 is most often used for protecting against transients from inductive switching environments.

Parametrics

JANTX1N6041 maximum ratings: (1)Lead temperature: 1500W for 10/1000 μa with repetition rate of 0.01%; (2)Operating and storage temperatures: -65 to 175℃; (3)Thermal resistance: 50℃/W junction to lead; (4)DC power dissipation: 1W at TL≤+ 125℃; (5)Solder temperature: 260℃ for 10s.

Features

JANTX1N6041 features: (1)Bidirectional TVS for thru-hole mounting; (2)Suppresses transients up to 1500W @ 10/1000 μs; (3)Clamps transient in less than 100 pico seconds; (4)Working voltage range 5.5V to 185V; (5)Hermetic sealed DO-13 metal package; (6)JAN/TX/TXV military qualification also available per MIL-PRE-19500/507 for the tighter tolerance"A" suffix types by adding the JAN, JANTX, or JANTXV prefix, e.g. JANTXV1N6036A; (7)For unidirectional TVS in the same DO-13 package, see separate data sheet; (8)Surface mount equivalent package also available as SMCJ5.C.

Diagrams

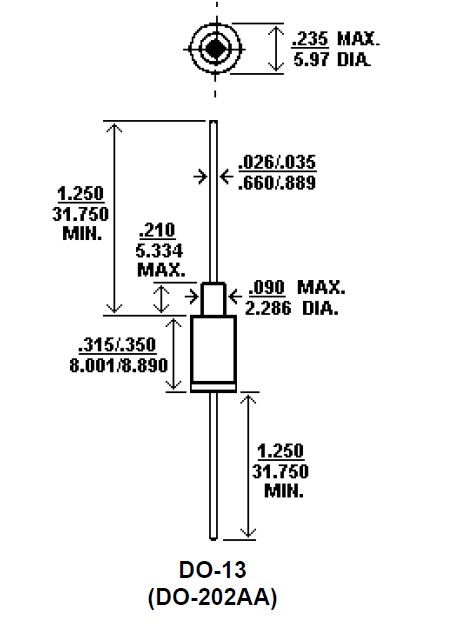

JANTX1N6041 package dimensions
