Product Summary

The KS8993MI is a highly integrated Layer 2 managed switch, is designed for low port count, cost-sensitive 10/100 Mbps switch systems. The KS8993MI offers an extensive feature set that includ es tag/port-based VLAN, quality of service (QoS) priority, management, management information base (MIB) counters, MII/SNI, and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications. Applications of the KS8993MI include: Broadband gateway / Firewall / VPN, Integrated DSL or cable modem multi-port router, Home networking expansion, Fiber broadband gateway, Applications requiring port redundancy and port monitoring.

Parametrics

KS8993MI absolute maximum ratings: (1) Supply Storage: -55 ° C to 150 ° C; (2) Supply Voltage: -0.5 to 2.4V (VDDA, VDDAP , VDDC) , -0.5 to 4.0V (VDDATX, VDDARX, VDDIO) ; (3) Input Voltage (all inputs) : -0.5V to 4.0V; (4) Output Voltage (all outputs: -0.5 to 4.0V; (5) Storage Temperature (Ts) : -55° C to 150° C.

Features

KS8993MI features: (1) Proven Integrated 3-Port 10/100 Ethernet Switch; (2) Comprehensive Configuration Register Access; (3) QoS/CoS Packet Prioritization Support; (4) QoS/CoS Packet Prioritization Support; (5) Advanced Switch Features; (6) Switch Management Features; (7) Low Power Dissipation.

Diagrams

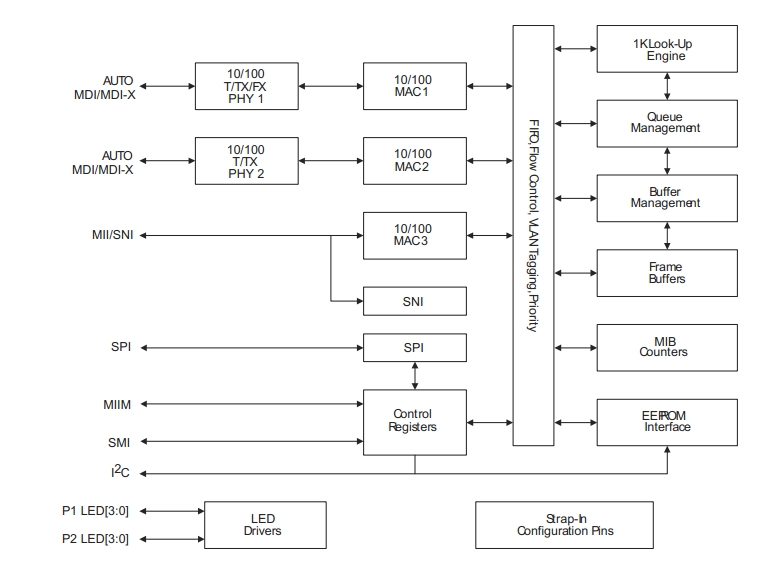

KS8993MI Functional Diagram

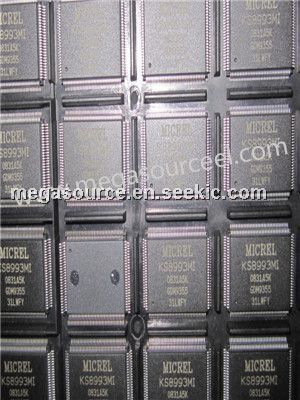

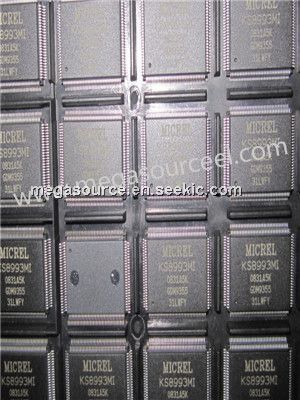

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KS8993MI
KS8993MI

IC SWITCH 10/100 3PORT 128PQFP
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KS8993
KS8993

IC SWITCH 10/100 3PORT 128PQFP
Data Sheet
Negotiable
KS8993-EVAL
KS8993-EVAL

BOARD EVAL EXPERIMENT FOR KS8993
Data Sheet
Negotiable
KS8993F
KS8993F

IC CONV MED 10/100 3PORT 128PQFP
Data Sheet
Negotiable
KS8993F-A1
KS8993F-A1

IC CONV MED 10/100 3PORT 128PQFP
Data Sheet
Negotiable
KS8993FA5
KS8993FA5

IC SWITCH 3-PORT 10/100 128-PQFP
Data Sheet
Negotiable
KS8993F-EVAL
KS8993F-EVAL

EVAL KIT EXPERIMENTAL KS8993F
Data Sheet
Negotiable
