Product Summary
The LQW18AN33NG00D is a Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound.
Parametrics
LQW18AN33NG00D absolute maximum ratings: (1)DC Current Max: 420mA; (2)External Depth: 0.8mm; (3)External Length / Height: 1.6mm; (4)External Width: 0.8mm; (5)Inductance Measurement Frequency: 100MHz; (6)Inductor Type: Chip Coil; (7)Operating Temperature Max: 105℃; (8)Operating Temperature Min: -55℃; (9)Package / Case: 0603; (10)Q @ Vr F: 40 ; (11)Q Factor @ Frequency: 40 @ 250MHz ; (12)Resistance: 0.23ohm ; (13)Resonant Frequency: 3.2GHz ; (14)Termination Type: SMD ; (15)Test Frequency: 100MHz ; (16)Tolerance +: 2% ; (17)Tolerance -: 2%.
Features
LQW18AN33NG00D features: (1)INDUCTOR, 0603 CASE, 33NH; (2)Inductance: 33nH; (3)Inductance Tolerance: ± 2%; (4)DC Resistance Max: 0.23ohm; (5)DC Current Rating: 420mA; (6)Q Factor: 40; (7)Self Resonant Frequency: 3.2GHz; (8)Q Test Frequency: 250MHz; (9)Core Material: Alumina; (10)Inductor Case Style: 0603; (11)No. of Pins: 2; (12)SVHC: No SVHC (19-Dec-2011); (13)Core Material: Alumina Ceramic.

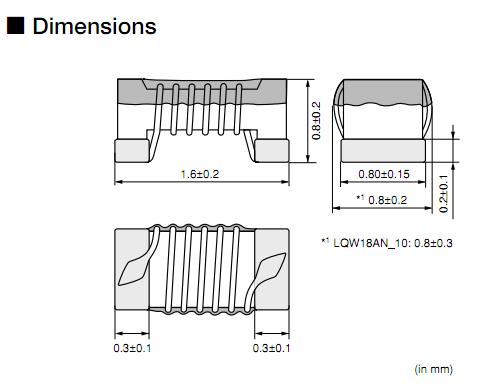

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQW18AN33NG00D |
Murata |
RF Inductors 0603 33nH |
Data Sheet |
|
|
||||||||||||
