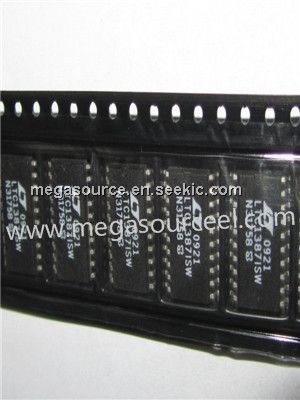

LTC1387ISW

multiprotocol transceiver, 5V, 5µA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.28~1.66 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	1.66 / Piece
2 ~ 200 :	1.28 / Piece

PartNumber:: LTC1387ISW

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-24

From Other Seller

Part Number:LTC1387ISW
US $1.28 - 1.66
Quantity:

piece

Product Summary

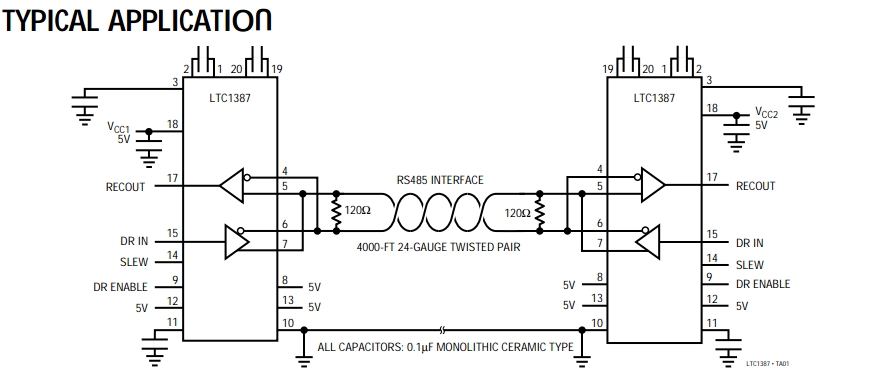

The LTC1387ISW is a low power reconfigurable CMOS bidirectional transceiver. The LTC1387ISW can be configured as an RS485 differential port or as two RS232 single-ended ports. Applications of the LTC1387ISW include: Point-of-Sale Terminals, Software Selectable Multiprotocol Interface Ports, Low Power RS485/RS422/RS232/EIA562 Interface, Cable Repeaters and Level Translators.

Parametrics

LTC1387ISW absolute maximum ratings: (1) Supply Voltage (VCC) : 6.5V; (2) Input Voltage Drivers: -0.3 to (Vcc +0.3V) ; (3) Receiver: -25 to 25V; (4) 485/232, ON, DXEN RXEN, SLEW: – 0.3V to (VCC + 0.3V) ; (5) Output Voltage Drivers: -18 to 18V; (6) Short-Circuit Duration OutputOperating Temperature Range: -40°C to 85°C; (7) Storage Temperature Range: –65°C to 150°C; (8) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LTC1387ISW features: (1) Two RS232 Transceivers or One RS485 Transceiver; (2) Operates from a Single 5V Supply; (3) Guaranteed Receiver Output with Inputs Floating or Shorted to Ground; (4) Logic Selectable Fast/Slow RS485 Driver Slew Rate; (5) Low Supply Current: 7mA Typical; (6) 5 µA Supply Current in Shutdown; (7) Self-Testing Capability in Loopback Mode; (8) Separate Driver and Receiver Enable Controls; (9) Driver Maintains High Impedance in Three-State, Shutdown or with Power Off; (10) Receiver Inputs Can Withstand ± 25V.
