Product Summary

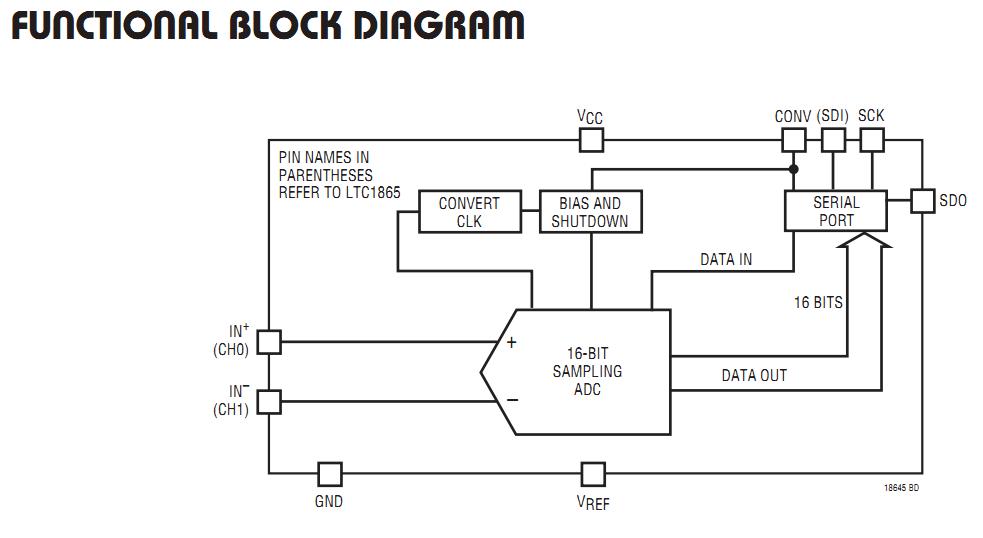

The LTC1865LAIMS#PBF is a 16-bit A/D converter that is offered in MSOP and SO-8 packages and operate on a single 5V supply. At 250ksps, the supply current is only 850μA. The supply current drops at lower speeds because the LTC1865LAIMS#PBF automatically power down between conversions. The 16-bit switched capacitor successive approximation ADC includes sample-and-holds. The LTC1865LAIMS#PBF offers a software-selectable 2-channel MUX and an adjustable reference pin on the MSOP version. The applications of the LTC1865LAIMS#PBF include High Speed Data Acquisition, Portable or Compact Instrumentation, Low Power Battery-Operated Instrumentation and Isolated and/or Remote Data Acquisition.

Parametrics

LTC1865LAIMS#PBF absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Ground Voltage Difference AGND, DGND LTC1865 MSOP Package: ±0.3V; (3)Analog Input: (GND – 0.3V) to (VCC + 0.3V); (4)Digital Input:. (GND – 0.3V) to 7V; (5)Digital Output: (GND – 0.3V) to (VCC + 0.3V); (6)Power Dissipation: 400mW; (7)Operating Temperature Range: 0 to 70℃; (8)Storage Temperature Range: –65 to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1865LAIMS#PBF features: (1)16-Bit 250ksps ADCs in MSOP Package; (2)Single 5V Supply; (3)Low Supply Current: 850μA (Typ); (4)Auto Shutdown Reduces Supply Current to 2μA at 1ksps; (5)True Differential Inputs; (6)1-Channel (LTC1864) or 2-Channel Versions; (7)SPI/MICROWIRE Compatible Serial I/O; (8)16-Bit Upgrade to 12-Bit LTC1286/LTC1298; (9)Pin Compatible with 12-Bit LTC1860/LTC1861; (10)Guaranteed Operation to +125℃ (MSOP Package).
