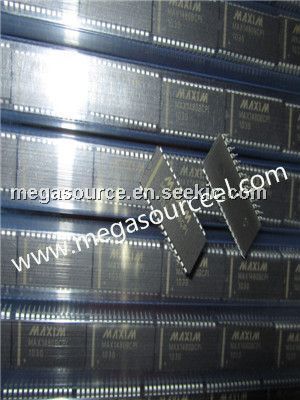

MAX1480BCPI+

data interface, -8V to 12.5V, 50mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.40~8.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	8.32 / Piece
2 ~ 100 :	6.40 / Piece

PartNumber:: MAX1480BCPI+

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-30

From Other Seller

Part Number:MAX1480BCPI+
US $6.40 - 8.32
Quantity:

piece

Product Summary

The MAX1480BCPI+ is a complete, electrically isolated, data-communications interface solutions in ahybrid microcircuit. The MAX1480BCPI+ features reduced-slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. Applications of the MAX1480BCPI+ include: Isolated RS-485/RS-422 Data Interface, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks, Automatic Test Equipment, HVAC/Building Control Networks.

Parametrics

MAX1480BCPI+ absolute Maximum Ratings: (1) With Respect to GND Supply Voltage:-0.3V to +6V; (2) Control Input Voltage (SD, FS) : -0.3V to (Vcc +0.3V) ; (3) Receiver Output Voltage (RO, RO) : -0.3V to (Vcc +0.3V); (4) Output Switch Voltage (D1, D2) : +12V; (5) With Respect to ISO COM Control Input Voltage (ISO DE ) : -0.3V to (ISO Vcc +0.3V) ; (6) Driver Input Voltage (ISO DI ) : -0.3V to (ISO Vcc +0.3V) ; (7) Receiver Output Voltage (ISO RO ) : -0.3V to (ISO Vcc +0.3V) ; (8) Driver Output Voltage (A, B, Y, Z ) : -8V to +12.5V; (9) Receiver Input Voltage (A, B) ; (10) LED Forward Current (DI, DE, ISO RO LED) ; (11) Storage Temperature Range: -65°C to +160°; (12) Lead Temperature (soldering, 10s) : +300°C.

Features

MAX1480BCPI+ features: (1) For Integrated ESD Protection MAX1480E/MAX1490E: ±15kV ESD-Protected Isolated RS-485/RS-422 Data Interfaces, Isolated RS-485/RS-422 Data Interfaces; (2) For Space-Constrained Applications MAX3157: High CMRR, RS-485 Transceiver with ±50V Isolation.
