Product Summary
The MC711K4CFNE3 is a high-performance microcontroller unit (MCU). It offers a non-multiplexed expanded bus, high speed and low power consumption. The fully static design allows operation at frequencies from dc to 4 MHz.
Parametrics
MC711K4CFNE3 absolute maximum ratings: (1)Supply voltage VDD –0.3 to +7.0 V; (2)Input voltage VIn –0.3 to +7.0 V; (3)Current drain per pin, excluding VDD, VSS, AVDD, VRH, and VRL ID 25 mA; (4)Storage temperature TSTG –55 to +150℃.
Features
MC711K4CFNE3 features: (1)8-bit opcodes and data; (2)16-bit addressing; (3)Two 8-bit accumulators, which can be concatenated to form one 16-bit accumulator; (4)8-bit pulse accumulator; (5)Four 8-bit pulse-width modulation (PWM) outputs; (6)Enhanced asynchronous serial communications interface (SCI).

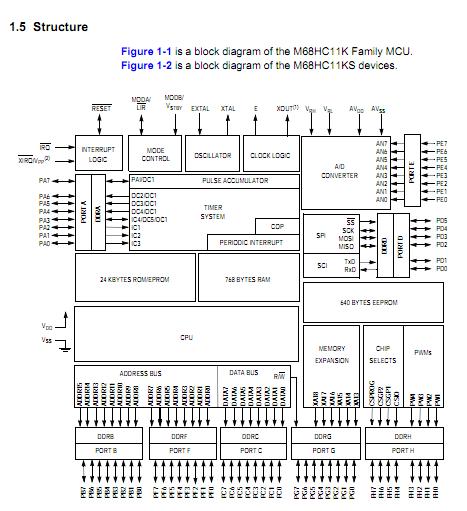

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC711K4CFNE3 |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8B MCU 768 BYTES RAM-E |
Data Sheet |
Negotiable |
|
||||
