Product Summary

The OPA637AU is a Difet operational amplifier. It provides a new level of performance in a precision FET op amp. When compared to the popular OPA111 op amp, the OPA637 has lower noise, lower offset voltage, and much higher speed. It is useful in a broad range of precision and high speed analog circuitry. The OPA637AU is available in plastic DIP, SOIC and metal TO-99 packages. Industrial and military temperature range models are available.

Parametrics

OPA637AU absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Input Voltage Range:+VS + 2V to –VS – 2V; (3)Differential Input Range:Total VS + 4V; (4)Power Dissipation: 1000mW; (5)Operating Temperature: 40 to +125℃; (6)Storage Temperature: –40 to +125℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

OPA637AU features: (1)VERY LOW NOISE: 4.5nV/√Hz at 10kHz; (2)FAST SETTLING TIME:450ns to 0.01%; (3)LOW VOS: 100μV max; (4)LOW IB: 5pA max; (5)Stable in Gain ≥ 5.

Diagrams

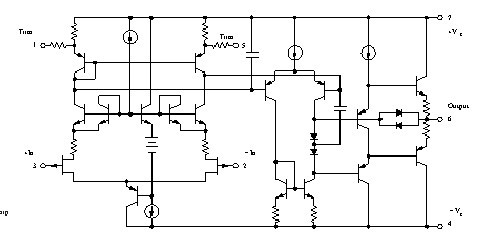

OPA637AU Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
OPA637AU
OPA637AU

Texas Instruments

High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp

Data Sheet

0-1: $13.09
1-10: $12.31
10-25: $11.53
25-50: $11.32
OPA637AU/2K5
OPA637AU/2K5

Texas Instruments

High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp

Data Sheet

0-2001: $8.27
2001-2500: $8.27
OPA637AU/2K5E4
OPA637AU/2K5E4

Texas Instruments

High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp

Data Sheet

0-2001: $8.27
2001-2500: $8.27
OPA637AUG4
OPA637AUG4

Texas Instruments

High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp

Data Sheet

0-52: $11.32
52-100: $10.33
100-250: $10.19
250-500: $9.99
OPA637AUE4
OPA637AUE4

Texas Instruments

Operational Amplifiers - Op Amps Prec High-Speed Difet Oper Amp

Data Sheet

Negotiable
