Product Summary
The PSD813F1A-15UI is a Flash In-System Programmable (ISP) Peripheral of Programmable Microcontroller (MCU) Peripherals brings In-System Programmability (ISP) to Flash memory and programmable logic. The result is a simple and flexible solution for embedded designs. PSD devices combine many of the peripheral functions found in MCU based applications. The PSD813F1A-15UI integrates an optimized “microcontroller macrocell” logic architecture.
Parametrics
PSD813F1A-15UI absolute maximum ratings: (1)TSTG, Storage Temperature: -65 to 125℃; (2)TLEAD, Lead Temperature during Soldering (20 seconds max.): 1 to 235℃; (3)VIO, Input and Output Voltage (Q = VOH or Hi-Z): -0.6 to 7.0 V; (4)VCC, Supply Voltage: -0.6 to 7.0 V; (5)VPP, Device Programmer Supply Voltage: -0.6 to 14.0 V; (6)VESD, Electrostatic Discharge Voltage (Human Body model): -2000 to 2000 V.
Features
PSD813F1A-15UI features: (1)DUAL bank flash memories, 1 Mbit of Primary Flash Memory (8; (2)Uniform Sectors); 256 Kbit Secondary EEPROM (4 Uniform Sectors); Concurrent operation: read from one memory while erasing and writing the other; (3)16 Kbit SRAM (BATTERY-BACKED); (4)PLD WITH MACROCELLS, Over 3,000 Gates Of PLD: DPLD and CPLD; DPLD - User-defined Internal chip-select decoding; CPLD with 16 Output Macrocells (OMCs) and 24 Input Macrocells (IMCs).

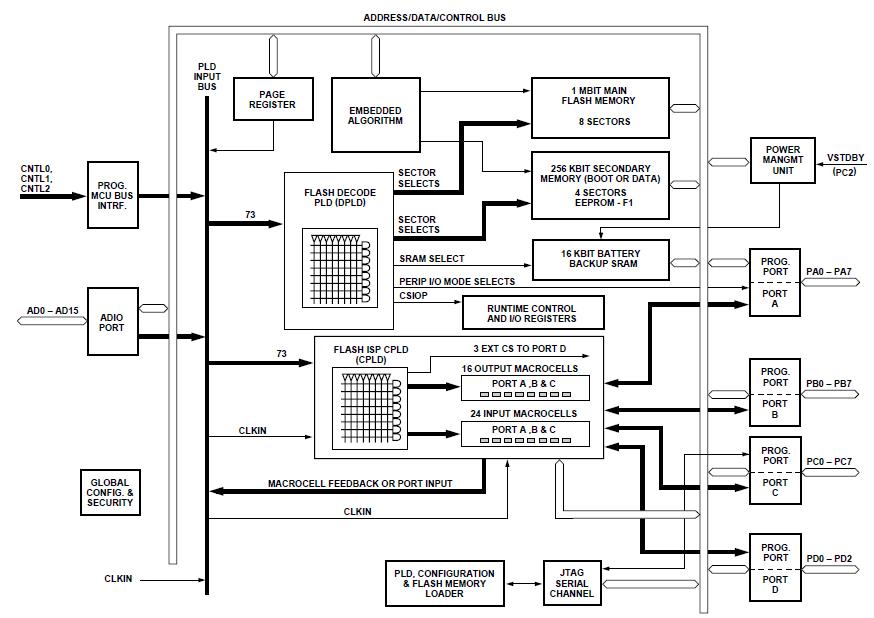

Diagrams
