Product Summary

The RTC62421A is a real time clock module.

Parametrics

RTC62421A absolute maximum ratings: (1)Power source voltage : -0.3 to 7.0V; (2)Input and output voltage : -0.3 to VDD+0.3V; (3)Storage temperature : -55 to +85℃.

Features

RTC62421A features: (1)Builtin crystal unit allows adjustment-free efficient operation; (2)Low standby voltage and current consumption (1.8μA at 2V); (3)Wide range of operating temperature (from -40℃ to +85℃); (4)24H/12H changeable and leap year automatically adjustable (gregorian calendar); (5)Similar mounting method (RTC-62423) to that used for universal type SMD IC.; (6)Pins and functions are compatible with the MSM6242 series.

Diagrams

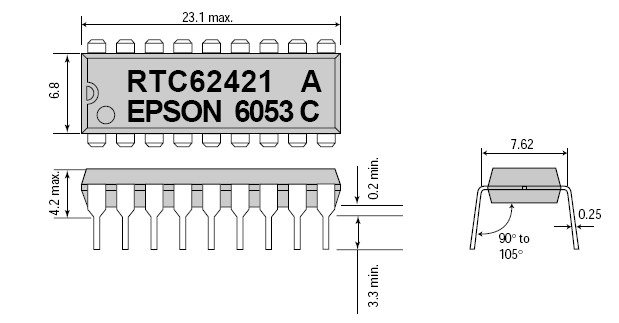

RTC62421A dimension
