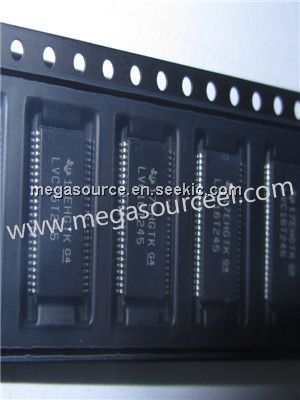

Product Summary
The SN74LVC16T245DGGR is a 16-bit noninverting bus transceiver. The SN74LVC16T245DGGR uses two separate configurable power-supply rails. The SN74LVC16T245DGGR is designed for a synchronous communication between data buses. The SN74LVC16T245DGGR is designed so that the control pins (1DIR, 2DIR, 1OE, and 2OE ) are supplied by VCCA.
Parametrics
SN74LVC16T245DGGR absolute maximum ratings: (1) Supply voltage range, VCCA and VCCB: -0.5 to 6.5V; (2) Input voltage range, VI, I/O ports (A port) , I/O ports (B port) , Control inputs: -0.5 to 6.5V; (3) Voltage range applied to any output in the high-impedance or power-off state, VO (A port) : -0.5 to 6.5V, B port: -0.5 to 6.5V; (4) Voltage range applied to any output in the high or low state, VO: -0.5 to VCCA +0.5V (A port) , -0.5 to 6.5V (B port) ; (5) Input clamp current, IIK (VI< 0) : -50mA; (6) Output clamp current, IOK (VO< 0) : -50mA; (7) Continuous output current, IO: ±50mA; (8) Continuous current through each VCCA, VCCB, and GND: ±100mA; (9) Storage temperature range, Tstg: -65°C to 150 °C.
Features
SN74LVC16T245DGGR features: (1) Control Inputs VIH/VIL Levels areReferenced to VCCA Voltage; (2) VCC Isolation Feature-If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State; (3) Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications; (4) Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.65-V to 5.5-V Power-Supply Range; (5) Ioff Supports Partial-Power-Down Mode.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SN74LVC16T245DGGR |
Texas Instruments |
Translation - Voltage Levels 16BDualSplyBusTrans |
Data Sheet |
|
|
|||||||||||||
