Product Summary
The ST72F321BJ7T6 is a ST7 microcontroller designed for mid-range applications. The ST72F321BJ7T6 is based on a common industry-standard 8-bit core, featuring an enhanced instruction set and are available with Flash or ROM program memory. The ST7 family architecture offers both power and flexibility to software developers, enabling the design of highly efficient and compact application code.
Parametrics
ST72F321BJ7T6 absolute maximum ratings: (1)VDD - VSS Supply voltage 6.5V; (2)VPP - VSS Programming Voltage 13V; (3)VIN, Input Voltage on true open drain pin VSS-0.3 to 6.5V; (4)Input voltage on any other pin VSS-0.3 to VDD+0.3V; (5)|VSSA - VSSx| Variations between digital and analog ground pins 50mV.
Features
ST72F321BJ7T6 features: (1)Clock, Reset And Supply Management; (2)Interrupt Management; (3)Up to 48 I/O Ports; (4)5 Timers; (5)3 Communications Interfaces; (6)1 Analog peripheral (low current coupling); (7)Instruction Set; (8)Development Tools.

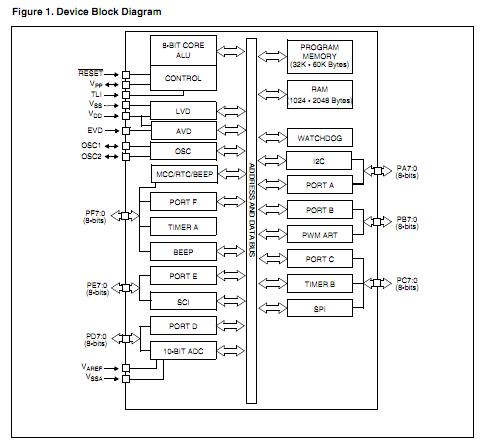

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ST72F321BJ7T6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) ST72321B 8B MCU |
Data Sheet |
|
|
|||||||||||
ST72F321BJ7T6TR |
STMicroelectronics |
8-bit Microcontrollers (MCU) 8 BITS MICROCONTR |
Data Sheet |
|
|
