Product Summary
The STP9NK50Z is an N-channel 500V - 0.72Ω - 7.2A TO-220/TO-220FP/D2PAK Zener-Protected SuperMESH Power MOSFET. The STP9NK50Z is obtained through an extreme optimization of STs well established strip-based PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh products. The applications of the STP9NK50Z are (1)high current, high speed switching; (2)ideal for off-line power supplies, adaptors and pfc; (3)lighting.
Parametrics
STP9NK50Z absolute maximum ratings: (1)VDS Drain-source Voltage (VGS = 0): 500 V; (2)VDGR Drain-gate Voltage (RGS = 20 kΩ): 500 V; (3)VGS Gate- source Voltage: ± 30 V; (4)ID Drain Current (continuous) at TC = 25℃: 7.2 (*) A; (5)ID Drain Current (continuous) at TC = 100℃: 4.5 (*) A; (6)IDM (l) Drain Current (pulsed): 28.8 A; (7)PTOT Total Dissipation at TC = 25℃: 30 W; (8)Derating Factor: 0.24 W/℃; (9)VESD(G-S) Gate source ESD(HBM-C=100pF, R=1.5K?): 3500 V; (10)dv/dt (1) Peak Diode Recovery voltage slope: 4.5 V/ns; (11)VISO Insulation Withstand Voltage (DC): 2500 V; (12)Tj, Operating Junction Temperature: -55 to 150℃; (13)Tstg, Storage Temperature: -55 to 150℃.
Features
STP9NK50Z features: (1)typical RDS(on) = 0.72 Ω; (2)extremely high dv/dt capability; (3)100% avalanche tested; (4)gate charge minimized; (5)very low intrinsic capacitances; (6)very good manufacturing repeatibility.

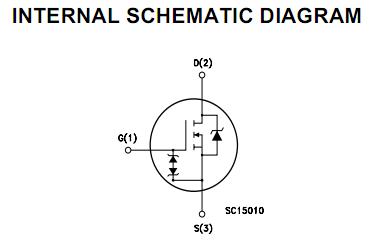

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STP9NK50Z |
STMicroelectronics |
MOSFET N-Ch 500 Volt 7.2 A Zener SuperMESH |
Data Sheet |
|
|
||||||||||||
|
STP9NK50ZFP |
STMicroelectronics |
MOSFET N-Ch, 500V-0.72ohms 7.2A |
Data Sheet |
|
|
||||||||||||
