Product Summary
The STPS15L25G is a Single Schottky rectifier. It is suited for Switched Mode Power Supplies and high frequency DC to DC converters (VRMS). Packaged in TO-220AC or D2 PAK, this device STPS15L25G is especially intended for use as a Rectifier at the secondary of 3.3V SMPS and DC/DC units.
Parametrics
STPS15L25G absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage 25 V; (2)IF(RMS) RMS forward current 30 A; (3)IF(AV) Average forward current: 15 A; (4)IFSM Surge non repetitive forward current: 250 A; (5)IRRM Repetitive peak reverse current: 1A; (6)IRSM Non repetitive peak reverse current: 4A; (7)PARM Repetitive peak avalanche power: 9000 W; (8)Tstg Storage temperature range: -65 to +150℃; (9)Tj Maximum operating junction temperature: 150℃; (10)dV/dt Critical rate of rise of reverse voltage: 10000 V/μs.
Features
STPS15L25G features: (1)very low forward voltage drop for less power dissipation and reduced heatsink; (2)optimized conduction/ reverse losses trade-off which means the highest efficiency in the applications; (3)avalanche capability specified.

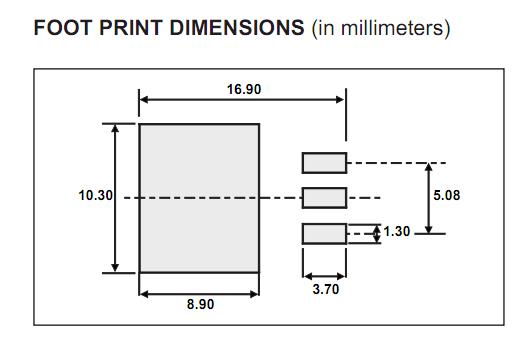

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS15L25G |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
