Product Summary

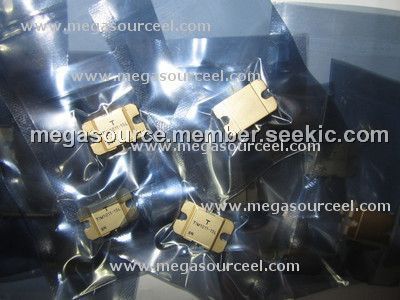

The TIM101115L is a microwave power gaas fet.

Parametrics

TIM101115L absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 11.5A; (4)Total Power Dissipation (Tc= 25 °C) PT: 60.0W; (5)Channel Temperature Tch: 175℃; (6)Storage Tstg: -65 ~ +175℃.

Features

TIM101115L features: (1)high power; (2)P1dB=42.0dBm at 10.7GHz to 11.7GHz; (3)broadbandinternallymatchedfet; (4)high gain; (5)G1dB=7.0dB at 10.7GHz to 11.7GHz; (6)hermetically sealed package.

Diagrams

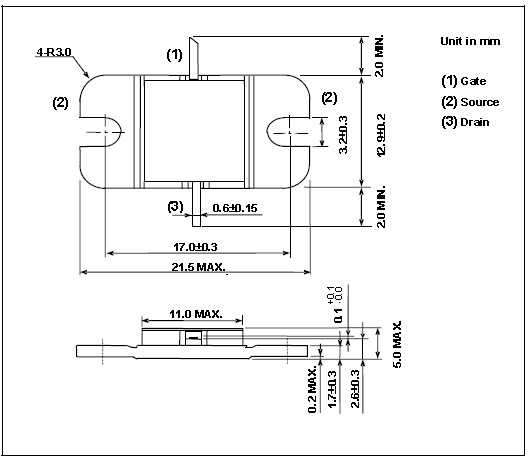

TIM101115L pin connection
