Product Summary
The TISP61089HDMR-S is an Overvoltage Protector. It is Intended for Use in GR-1089-CORE Issue 3 Compliant Line Cards.
Parametrics
TISP61089HDMR-S absolute maximum ratings: (1)Repetitive peak off-state voltage, VGK =0 VDRM: -170 V; (2)Repetitive peak gate-cathode voltage, VKA =0 VGKRM: -167 V; (3)Non-repetitive peak impulse current, IPPSM: 500A; (4)Non-repetitive peak on-state current, 50 Hz / 60 Hz, ITSM: 2.6A; (5)Junction temperature TJ: -40 to +150℃; (6)Storage temperature range Tstg: -65 to +150℃.
Features
TISP61089HDMR-S features: (1)Low 15 mA max. Gate Triggering Current; (2)Supports Battery Voltages Down to -155 V; (3)High 150 mA min. Holding Current.

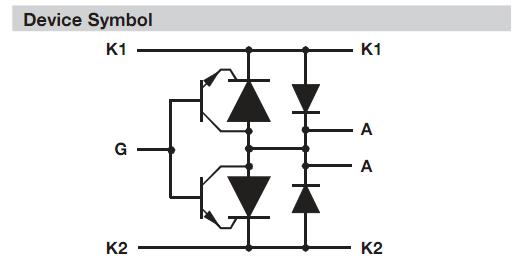

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TISP61089HDMR-S |
Bourns |
SCRs Dual P Gate Forward Conducting |
Data Sheet |
|
|
||||||||||||
