Product Summary

The TMS320C6711BGFN150 is based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications. With performance of up to 900 million floating-point operations per second (MFLOPS) at a clock rate of 150 MHz, the TMS320C6711BGFN150 device offers cost-effective solutions to high-performance DSP programming challenges. The TMS320C6711BGFN150 DSP possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. This processor of TMS320C6711BGFN150 has 32 general-purpose registers of 32-bit word length and eight highly independent functional units. The eight functional units provide four floating-/fixed-point ALUs, two fixed-point ALUs, and two floating-/fixed-point multipliers. The TMS320C6711BGFN150 can produce two MACs per cycle for a total of 300 MMACS.

Parametrics

TMS320C6711BGFN150 absolute maximum ratings: (1)Supply voltage range, CVDD: -0.3V to 1.8V; (2)Supply voltage range, DVDD: -0.3V to 4V; (3)Input voltage ranges: -0.3V to 4V; (4)Output voltage ranges: -0.3V to 4V; (5)Operating case temperature ranges, TC: -40℃ to105℃; (6)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TMS320C6711BGFN150 features: (1)Excellent-Price/Performance Floating-Point; (2)Advanced Very Long Instruction Word (VLIW) C67x DSP Core; (3)Instruction Set Features; (4)L1/L2 Memory Architecture; (5)Enhanced Direct-Memory-Access (EDMA) Controller (16 Independent Channels); (6)Two 32-Bit General-Purpose Timers; (7)Flexible Phase-Locked-Loop (PLL) Clock Generator [C6711/11B]; (8)IEEE-1149.1 (JTAG) Boundary-Scan-Compatible; (9)256-Pin Ball Grid Array (BGA) Package (GFN Suffix) [C6711/C6711B Only]; (10)CMOS Technology.

Diagrams

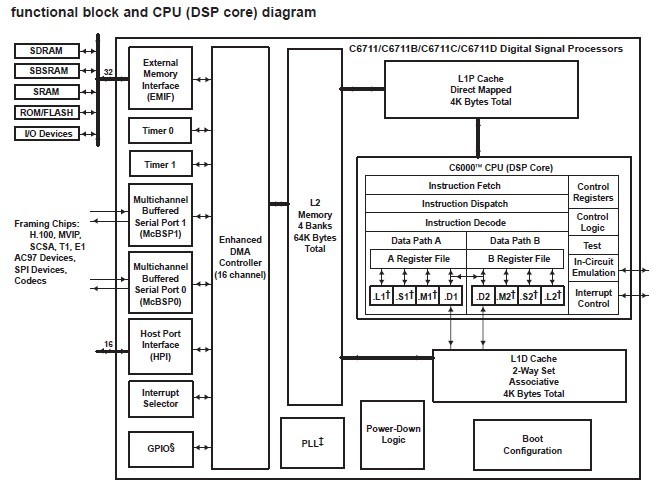

TMS320C6711BGFN150 functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

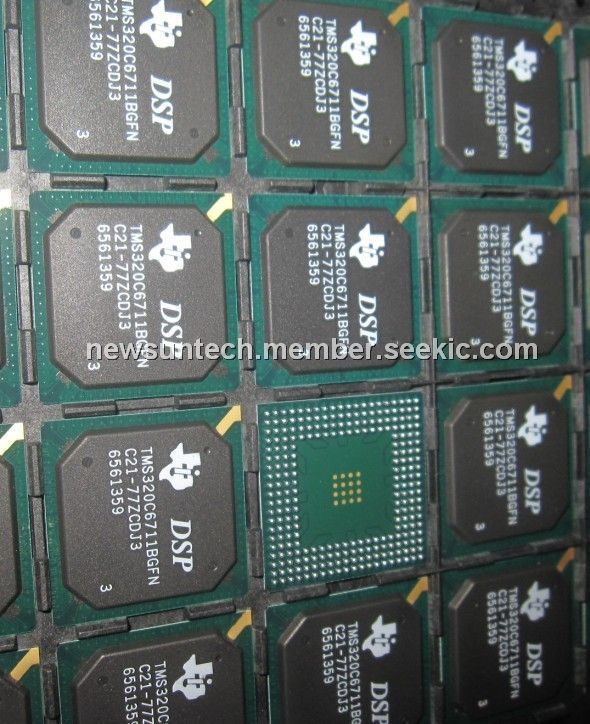

TMS320C6711BGFN150
TMS320C6711BGFN150


IC FLOATING-POINT DSP 256-BGA

Data Sheet

Negotiable
