Product Summary
The TLE6250G is a CAN-transceiver. It is a monolithic integrated circuit that is available as bare die as well as in a P-DSO-8-3 package. The TLE6250G is optimized for high speed differential mode data transmission in automotive and industrial applications and is compatible to ISO/DIS 11898. The TLE6250G works as an interface between the CAN protocol controller and the physical differential bus in both, 12 V and 24 V systems.
Parametrics
TLE6250G absolute maximum ratings: (1)supply voltage, VCC: –0.3 to 6.5 V; (2)CAN input voltage (CANH, CANL), VCANH/L: –40 to 40 V; (3)Logic voltages at INH, RM, TxD, RxD, VI: –0.3 to VCC when 0 V < VCC < 5.5 V; (4)Electrostatic discharge voltage at CANH,CANL, VESD: –6 to 6 kV when human body model(100 pF via 1.5 kΩ); (5)Electrostatic discharge voltage, VESD: –2 to 2 kV when human body model(100 pF via 1.5 kΩ); (6)Junction temperature, Tj: – 40 to 160℃.
Features
TLE6250G features: (1)CAN data transmission rate up to 1 MBaud; (2)Suitable for 12 V and 24 V applications; (3)Excellent EMC performance (very high immunity and very low emission); (4)Version for 5 V and 3.3 V micro controllers; (5)Bus pins are short circuit proof to ground and battery voltage; (6)Over-temperature protection; (7)Very wide temperature range (- 40℃ up to 150℃).

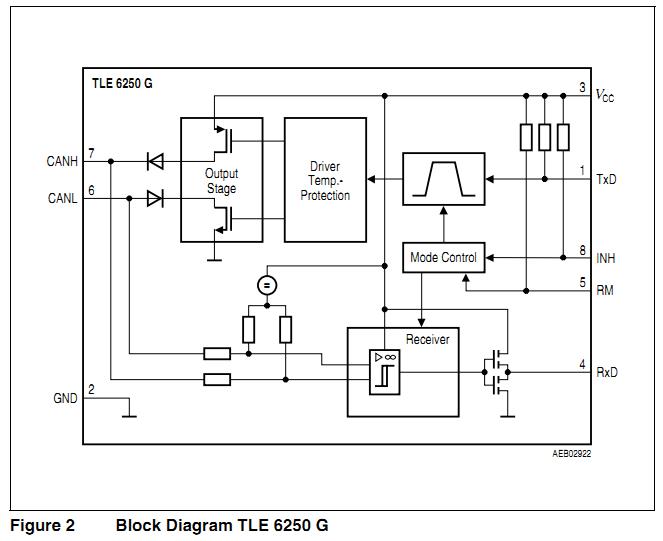

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE6250G |
Infineon Technologies |
Network Controller & Processor ICs 12 -24 V 70 mA CAN TRANSCEIVER |
Data Sheet |
|
|
||||||||||||
|
TLE6250G ITJKK |
|
IC TXRX CAN STD HI SPEED |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLE6250G V33 |
Infineon Technologies |
Network Controller & Processor ICs 12 -24 V 70 mA CAN Transceiver |
Data Sheet |
|
|
||||||||||||
 |
TLE6250GNT |
Infineon Technologies |
Network Controller & Processor ICs 12 -24 V 70 mA CAN Transceiver |
Data Sheet |
Negotiable |
|
||||||||||||
