Product Summary

The TVP5147M1PFP device is a high-quality, single-chip digital video decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5147M1PFP decoder supports the analog-to-digital (A/D) conversion of component YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL, and SECAM composite and S-video into component YCbCr. Applications of the TVP5147M1PFP include: DLP projectors, Digital TV, LCD TV/monitors, DVD recorders PVR, PC video cards, Video capture/video editing and Video conferencing.

Parametrics

TVP5147M1PFP absolute maximum ratings: (1) Supply voltage range: 0.5 to 4V ( IOVDD to I/O GND) ; (2) -0.2 to 2V (DVDD to DGND) ; (3) Digital input voltage, VI to DGND: -0.5 to 4.5V; (4) Digital output voltage, VO to DGND: -0.5 to 4.5V; (5) Analog input voltage range AIN to AGND: -0.2 to 2V; (6) Operating free-air temperature, TA: 0°C to 70°C; (7) Storage temperature, Tstg: -65°C to 150 °C.

Features

TVP5147M1PFP features: (1) Two 30-MSPS, 10-bit A/D channels with programmable gain control; (2) Supports NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60) and SECAM (B, D, G, K, K1, L) CVBS, and S-video; (3) Supports analog component YPbPr video format with embedded sync; (4) 10 analog video input terminals for multisource connection; (5) Supports analog video output; (6) Composite and S-video processing; (7) Certified Macrovision copy protection detection.

Diagrams

TVP5147M1PFP Functional Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

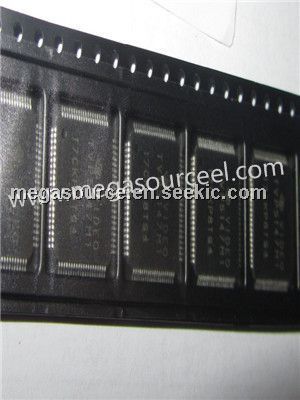

TVP5147M1PFP
TVP5147M1PFP
Texas Instruments
Video ICs 10B High Qual S-Chip Dig Vid Decoder
Data Sheet
0-1: $3.89
1-25: $3.28
25-100: $3.01
100-250: $2.74
TVP5147M1PFPR
TVP5147M1PFPR
Texas Instruments
Video ICs 10B Hi Qual Sgl-Chip Dig Vid Dec
Data Sheet
0-1: $3.89
1-25: $3.28
25-100: $3.01
100-250: $2.74
