Product Summary

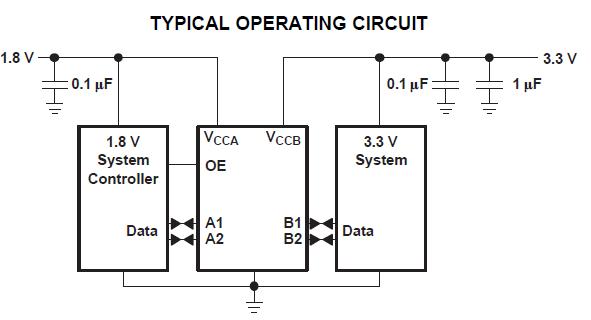

The TXS0102DCUR uses two separate configurable power-supply rails. The TXS0102DCUR is designed to track VCCA. Applications of the TXS0102DCUR include: B2, GND, VCCA, A2, A1, OE, VCCB, B1.
Parametrics
TXS0102DCUR absolute maximum ratings: (1) VCCA Supply voltage range: -0.5V to +4.6V; (2) VCCB Supply voltage range: -0.5V to +6.5V; (3) VI Input voltage range: -0.5V to +4.6V, -0.5V to +6.5V; (3) Voltage range applied to any output in the high-impedance or power-off state: -0.5V to +4.6V, -0.5V to +6.5V; (4) Voltage range applied to any output in the high or low state: -0.5V to +0.5V; (5) Input clamp current: -50mA; (6) Output clamp current: -50mA; (7) Continuous output current: ±50mA; (8) Continuous current through VCCA, VCCB, or GND: ±100mA; (9) Package thermal impedance: DCT package=220°C/W, DCU package=227°C/W, YZP package=102°C/W; (10) Storage temperature range: -65°C to +150°.
Features
TXS0102DCUR features: (1) Available in the Texas Instruments NanoStar™ and NanoFree™ Packages; (2) 1.65V to 3.6V on A port and 2.3V to 5.5V on B port (VCCA ≦VCCB) ; (3) VCC Isolation Feature – If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State; (4) Ioff Supports Partial-Power-Down Mode Operation; (5) Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (6) ESD Protection Exceeds JESD 22.
