UPA2352T1G-E4-A

Dual N-channel MOSFET, QFN, 24 V, ±4.0 A, 0.75 W, 45.0 mΩ, Pb-free bump, G-S protection diode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.50

PartNumber:: UPA2352T1G-E4-A

Brand:: NEC - Nec | Pack: QFN | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hellen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-06

From Other Seller

Part Number:UPA2352T1G-E4-A
US $0.40 - 0.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The UPA2352T1G-E4-A is a Dual N-channel MOSFET designed for Lithium-Ion battery protection circuit. Ecologically Flip chip MOSFET for Lithium-Ion battery Protection (EFLIP).

Parametrics

UPA2352T1G-E4-A absolute maximum ratings: (1)Source to Source Voltage (VGS = 0 V), VSSS: 24 V; (2)Gate to Source Voltage (VSS = 0 V), VGSS: ±12 V; (3)Source Current (DC), IS(DC): ±4.0 A; (4)Source Current (pulse),IS(pulse): ±40 A; (5)Total Power Dissipation (2units), PT: 0.75 W; (6)Channel Temperature, Tch: 150℃; (7)Storage Temperature, Tstg: -55 to +150℃.

Features

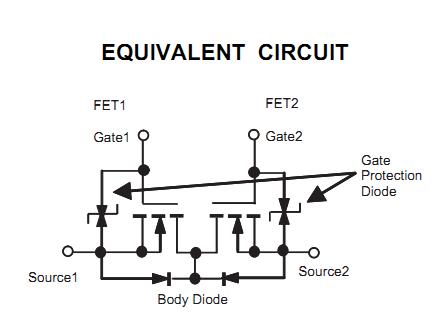

UPA2352T1G-E4-A features: (1)Monolithic Dual MOSFET: Connecting the Drains on the circuit board is not required because the Drains of the FET1 and the FET2 are internally connected; (2)2.5 V drive available and low on-state resistance: RSS(on)1 = 43.0 mΩ MAX. (VGS = 4.5 V, IS = 2.0 A); RSS(on)2 = 45.0 mΩ MAX. (VGS = 4.0 V, IS = 2.0 A); RSS(on)3 = 55.0 mΩ MAX. (VGS = 3.1 V, IS = 2.0 A); RSS(on)4 = 67.0 mΩ MAX. (VGS = 2.5 V, IS = 2.0 A); (3)Built-in G-S protection diode against ESD; (4)Pb-free bump.
