Product Summary

The bgy588 is a CATV amplifier module. The bgy588 is for CATV systems operating over a frequency range of 40 to 550MHz at a voltage supply of +24V (DC) and intended for use as a line-extender.

Parametrics

bgy588 absolute maximum ratings: (1) RF input voltage Vi: 55dBmV; (2) storage temperature tstg: -40 to +100°C; (3) mounting base operating temperature Tmb: -20 to +100°C.

Features

bgy588 features: (1) Excellent linearity; (2) Extremely low noise; (3) Silicon nitride passivation; (4) Rugged construction; (5) TiPtAu metallized crystals ensure optimal reliability.

Diagrams

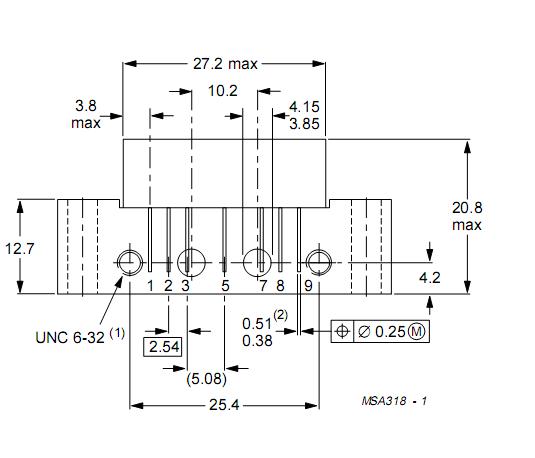

bgy588 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BGY588
BGY588
Other

Data Sheet
Negotiable
BGY588C,112
BGY588C,112
NXP Semiconductors
RF Amplifier RF Amp Module Single Push Pull Amp 550MHz
Data Sheet
0-1: $15.40
1-25: $14.17
25-100: $13.16
100-250: $12.08
BGY588N
BGY588N
Other

Data Sheet
Negotiable
BGY588N,112
BGY588N,112
NXP Semiconductors
RF Amplifier CATV P/P AMP 34.5dB
Data Sheet
0-1: $20.79
1-25: $17.62
25-100: $13.85
100-250: $13.26
