Product Summary

The bgy785a is a hybrid high dynamic range cascode amplifier module in a SOT115J package operating with a voltage supply of 24V (DC). The applications of bgy785a are: CATV systems operating in the 40 MHz to 750 MHz frequency range.

Parametrics

bgy785a absolute maximum ratings: (1)Vi RF input voltage: 65 dBmV; (2)Tstg storage temperature: -40 +100 ℃; (3)Tmb mounting base temperature: -20 +100 ℃.

Features

bgy785a features: (1)Excellent linearity; (2)Extremely low noise; (3)Silicon nitride passivation; (4)Rugged construction; (5)Gold metallization ensures excellent reliability.

Diagrams

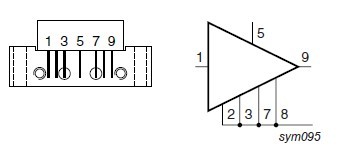

bgy785a Simplified outline

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BGY785A
BGY785A

Other


Data Sheet

Negotiable
BGY785A,112
BGY785A,112

NXP Semiconductors

RF Amplifier BULK CATV-MOD

Data Sheet

0-59: $19.21
59-100: $17.84
100-250: $16.37
BGY785AD
BGY785AD

Other


Data Sheet

Negotiable
