Product Summary

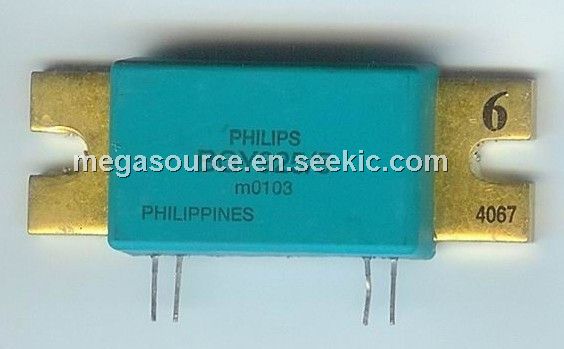

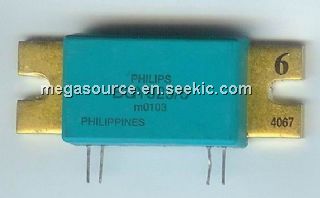

The bgy925 is a three-stage UHF amplifier module in a SOT365A package. The bgy925 consists of one NPN silicon planar transistor die and two silicon MOSFET dies mounted on a metallized ceramic AlN substrate, together with matching and bias circuitry. Applications of the bgy925 include: Base station transmitting equipment operating in the 920 to 960MHz frequency range.
Parametrics
gy925 absolute maximum ratings: (1) DC supply voltage VS1: 28V; (2) DC supply voltage VS2: 28V; (3) input drive power PD: 80mW; (4) load power PL: 32mW; (5) Storage temperature Pstg: -30 to +100°C; (6) operating mounting-base temperature Tmb: -10 to +90°C.
Features
gy925 features: (1) 26V nominal supply voltage; (2) 23W output power into a load of 50Ω with an RF drive.
