Product Summary
The EMM5068VU is a MMIC amplifier that contains a three-stages amplifier, internally matched, for standard communications band in the 9.5 to 13.3GHz frequency range. Eudyna Devices stringent Quality Assurance Program assures the highest reliability and consistent performance.
Parametrics
EMM5068VU absolute maximum ratings: (1)Drain-Source Voltage: 10 V; (2)Gate-Source Voltage: -3 V; (3)Input Power: 26 dBm; (4)Channel Temperature: +175 ℃; (5)Storage Temperature: -55 to +125 ℃.
Features
EMM5068VU features: (1)High Output Power: Pout=33.0dBm (typ.); (2)High Linear Gain: GL=26.0dB (typ.); (3)Broad Band: 9.5-13.3GHz; (4)Impedance Matched Zin/Zout=50Ω; (5)Small Hermetic Metal-Ceramic SMT Package(VU).

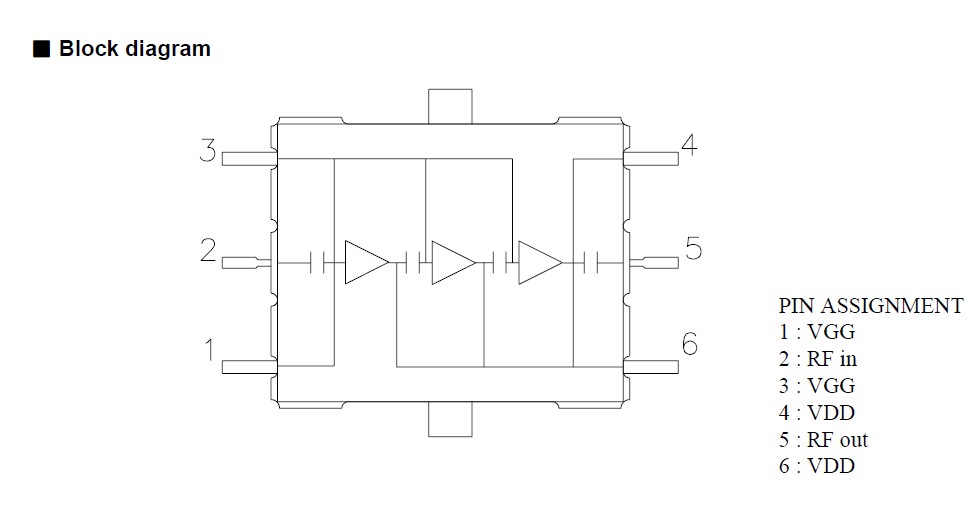

Diagrams
