Product Summary

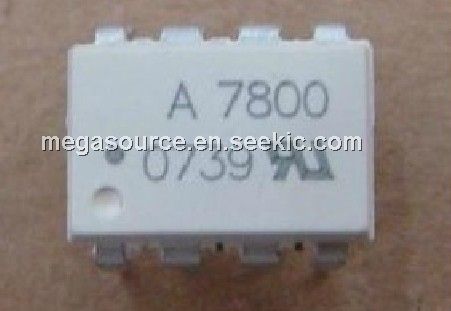

The hcpl-7800a is a highn CMR isolation amplifier. The hcpl-7800a provides a unique combination of features ideally suited for motor controlcircuit designers. Applications of the hcpl-7800a include: Motor Phase Current Sensing, General Purpose Current Sensing and High-Voltage Power Source Voltage Monitoring.
Parametrics
hcpl-7800a absolute maximum ratings: (1) Storage Temperature Ts: -55 to 125°C; (2) Ambient Operating Temperature TA: -40 to 100°C; (3) Supply Voltages VDD1, VDD2: 0 to 5.5V; (4) Steady-State Input Voltage VIN+, VIN-: -2.0 to VDD1 +0.5V; (5) Two Second Transient Input Voltage: -6.0V; (6) Output Voltages VOUT+, VOUT-: -0.5 to VDD2 +0.5V; (7) Lead Solder Temperature: 260°C.
Features
hcpl-7800a features: (1) 15 kV/μs Common-Mode Rejection at Vcm=1000V; (2) Compact, Auto-Insertable Standard 8-pin DIP Package; (3) 0.9 mV Input Offset Voltage; (4) 85 kHz Bandwidth; (5) Fully Differential Circuit Topology; (6) Switch-Mode Power SupplySignal Isolation; (7) General Purpose Analog Signal Isolation; (8) Transducer Isolation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-7800A |
Avago Technologies |
Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A#300 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-300E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-500E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A#500 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-000E |
Avago Technologies |
Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
