Product Summary
The mhw914 is a 24 Vdc Supply, 40 to 870 MHz, CATV GaAs Forward Amplifier Module. The applications are (1)CATV Systems Operating in the 40 to 870 MHz Frequency Range; (2)Input Stage Amplifier in Optical Nodes, Line Extenders and Trunk Distribution Amplifiers for CATV Systems; (3)Output Stage Amplifier on Applications Requiring Low Power Dissipation and High Output Performance; (4)Driver Amplifier in Linear General Purpose Applications.
Parametrics
mhw914 absolute maximum ratings: (1)RF Voltage Input (Single Tone), Vin: +65 dBmV; (2)DC Supply Voltage, VCC: +26 Vdc; (3)Operating Case Temperature Range, TC: –20 to +100 °C; (4)Storage Temperature Range, Tstg: –40 to +100 °C.
Features
mhw914 features: (1)Specified for 79–, 112– and 132–Channel Loading; (2)Excellent Distortion Performance; (3)Built–in Input Diode Protection; (4)GaAs FET Transistor Technology; (5)Unconditionally Stable Under All Load Conditions.

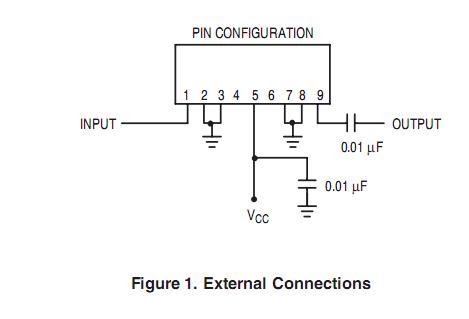

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW9146 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHW9146N |
|
IC CATV AMP MOD 870MHZ 245MA 7P |
Data Sheet |
Negotiable |
|
||||
