Product Summary
The mhw9188an is a CATV GaAs forward power doubler amplifier module. Applications are (1)CATV Systems Operating in the 47 to 870 MHz Frequency Range; (2)Output Stage Amplifier in Optical Nodes, Line Extenders and Trunk Distribution Amplifiers for CATV Systems; (3)Driver Amplifier in Linear General Purpose Applications.
Parametrics
mhw9188an absolute maximum ratings: (1)RF Voltage Input (Single Tone)Vin: +70 dBmV; (2)DC Supply Voltage VCC: +26 Vdc; (3)Operating Case Temperature Range TC: -20 to +100 °C; (4)Storage Temperature Range Tstg: -40 to +100 °C.
Features
mhw9188an features: (1)Specified for 79 - and 112-Channel Loading; (2)Excellent Distortion Performance; (3)Higher Output Capability; (4)Built -in Input Diode Protection; (5)GaAs FET Transistor Technology; (6)Unconditionally Stable Under All Load Conditions; (7)Output Port Ring Wave Protection.

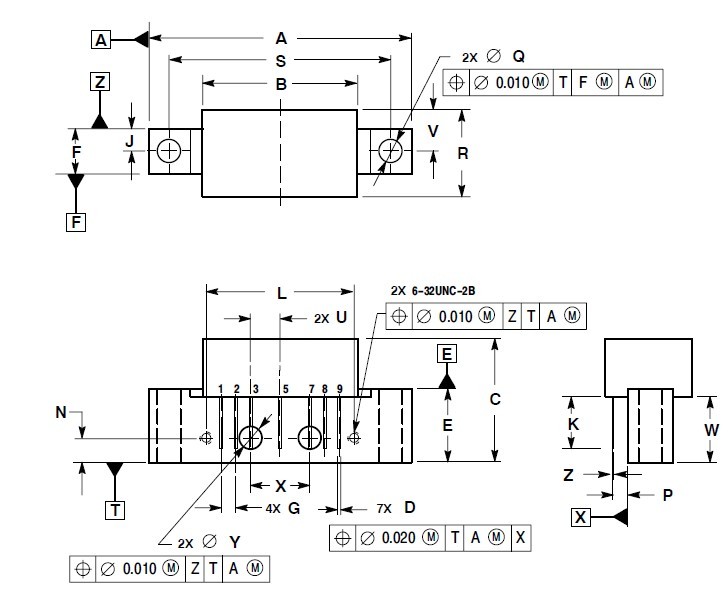

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW9188AN |
|
IC CATV AMP MOD 870MHZ 425MA 7P |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MHW903 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHW9118A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHW912 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHW913 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHW9146 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHW9146N |
|
IC CATV AMP MOD 870MHZ 245MA 7P |
Data Sheet |
Negotiable |
|
||||
