Product Summary

The mrf10501 is a microwave power transistor. The mrf10501 is designed for 1025–1150 MHz pulse common base amplifier applications such as TCAS, TACAN and Mode–S transmitters.

Parametrics

mrf10501 absolute maximum ratings: (1)Collector–Emitter Voltage VCES: 65 Vdc; (2)Collector–Base Voltage VCBO: 65 Vdc; (3)Emitter–Base Voltage VEBO: 3.5 Vdc; (4)Collector Current — Peak (1)IC: 29 Adc; (5)Total Device Dissipation @ TC = 25°C PD: 1460Watts; (6)Storage Temperature Range Tstg: –65 to +200 °C; (7)Junction Temperature TJ: 200 °C.

Features

mrf10501 features: (1)100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR; (2)Hermetically Sealed Industry Package; (3)Silicon Nitride Passivated; (4)Gold Metallized, Emitter Ballasted for Long Life and Resistance to Metal Migration; (5)Internal Input and Output Matching; (6)Characterized with 10 ms, 1% Duty Cycle Pulses.

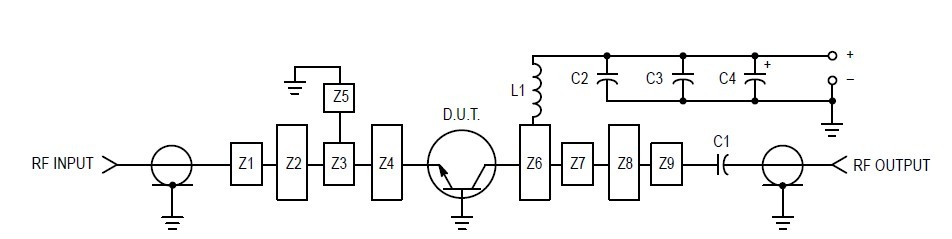

Diagrams

mrf10501 pin connection
