Product Summary
The mrf1517nt1 is an N-Channel Enhancement-Mode Lateral MOSFET designed for broadband commercial and industrial applications with frequencies to 520 MHz. The high gain and broadband performance of this device make it ideal for large-signal, common source amplifier applications in 7.5 volt portable and 12.5 volt mobile FM equipment.
Parametrics
mrf1517nt1 absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5, +40 Vdc; (2)Gate-Source Voltage VGS: ±20 Vdc; (3)Drain Current Continuous ID: 2 Adc; (4)Total Device Dissipation @ TC = 25°C, PD: 31.25W; 0.25W/°C Derate above 25°C; (5)Storage Temperature Range, Tstg: -65 to +150 °C; (6)Operating Junction Temperature, TJ: 150 °C.
Features
mrf1517nt1 features: (1)Excellent Thermal Stability; (2)Characterized with Series Equivalent Large-Signal Impedance Parameters; (3)N Suffix Indicates Lead-Free Terminations. RoHS Compliant; (4)In Tape and Reel. T1 Suffix = 1,000 Units per 12 mm, 7 inch Reel.

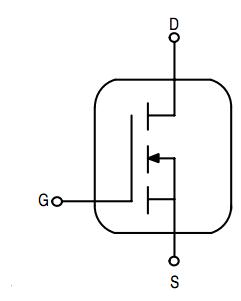

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF1517NT1 |
Freescale Semiconductor |
Transistors RF MOSFET Power RF LDMOS FET PLD1.5N |
Data Sheet |
|
|
||||||||||||
