Product Summary

The mrf1518 is an N-Channel Enhancement-Mode Lateral MOSFET. The mrf1518 is designed for broadband commercial and industrial applications with frequencies to 520 MHz. The high gain and broadband performance of the mrf1518 make it ideal for large- signal, common source amplifier applications in 12.5 volt mobile FM equipment.

Parametrics

mrf1518 absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5, +40 Vdc; (2)Gate-Source Voltage VGS: ±20 Vdc; (3)Drain Current — Continuous ID: 4 Adc; (4)Total Device Dissipation @ TC = 25°C (1)Derate above 25°C PD: 62.5 W; (5)Storage Temperature Range Tstg: - 65 to +150 °C; (6)Operating Junction Temperature TJ: 150 °C.

Features

mrf1518 features: (1)Excellent Thermal Stability; (2)Characterized with Series Equivalent Large-Signal Impedance Parameters; (3)N Suffix Indicates Lead-Free Terminations. RoHS Compliant.; (4)In Tape and Reel. T1 Suffix = 1,000 Units per 12 mm, 7 inch Reel.

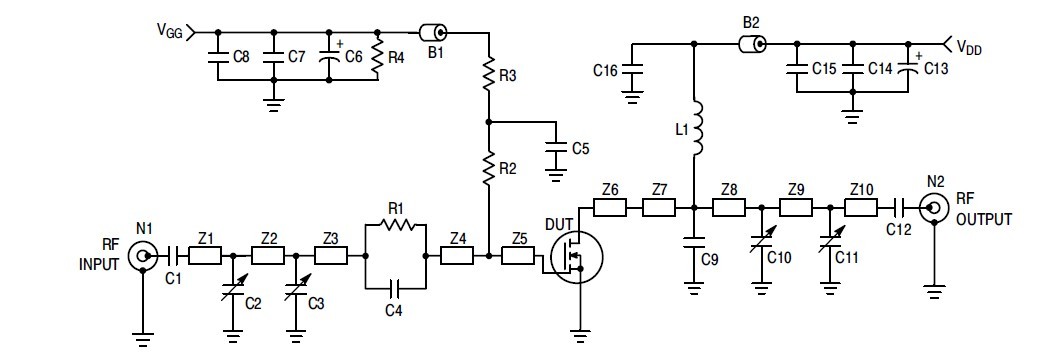

Diagrams

mrf1518 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF1518NT1
MRF1518NT1
Freescale Semiconductor
Transistors RF MOSFET Power RF LDMOS FET PLD1.5N
Data Sheet
0-1: $3.37
1-25: $3.00
25-50: $2.91
50-100: $2.50
MRF1518T1
MRF1518T1
Other

Data Sheet
Negotiable
