Product Summary

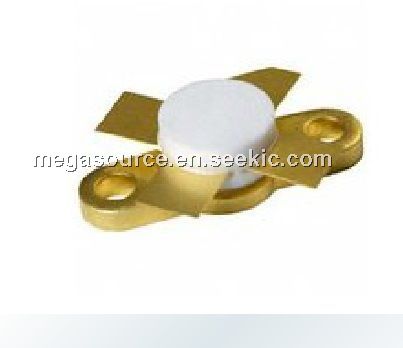

The mrf410 is an NPN Bipolar RF power transistor. The MRF410 is designed primarily for HF, VHF, UHF, 800MHz, and Microwave applications in military and commercial land mobile, avionics, and marine transmitters.

Parametrics

mrf410 absolute maximum ratings: (1)BVCES IC=10 mA Max. 65 V; (2)BVCEO IC=30 mA Max. 35 V; (3)BVEBO IE =5 mA Max. 4 V; (4)IC Max. 1.5 A; (5)Ptot Max. 40 W Min. -65 ℃; (6)TSTG Max. 150 ℃; (7)TjM Max. 175 ℃.

Features

mrf410 features: (1)1.5-30MHz, HF/SSB Transistors; (2)Designed for broadband operation, these devices feature specified intermodulation distoration at rated power output. Applications include mobile, marine, fixed station, and amateur HF/SSB equipment, operating from 12.5, 13.6, 28 or 50 volt supplies.

Diagrams

mrf410 block diagram
