Product Summary

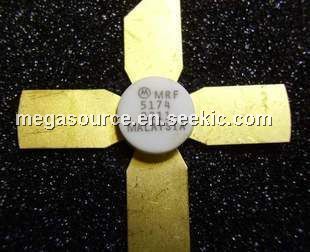

The mrf5174 is an NPN RF power transistor. It is designed for Class A, AB and C Amplifier Applications in the 225 to 400 MHz Band.

Parametrics

mrf5174 absolute maximum ratings: (1)IC: 0.5 A; (2)VCBO: 40 V; (3)PDISS: 8.75 W @ TC = 25 ℃; (4)TJ: -55 ℃ to +200 ℃; (5)TSTG: -55 ℃ to +200 ℃; (6)θJC: 20 ℃/W.

Features

mrf5174 features: (1)High Gain; (2)Gold Metallization; (3)Emitter Ballasting.

Diagrams

mrf5174 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF5174
MRF5174
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $39.60
1-10: $33.00
10-25: $29.70
25-50: $26.40
