Product Summary

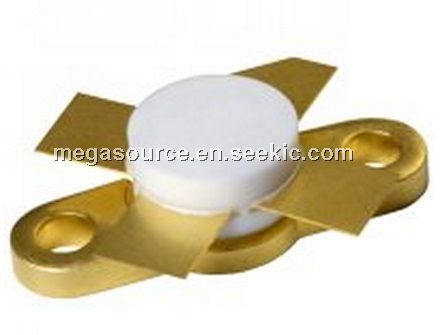

The mrf519 is an NPN silicon rf power transistor designed for Class C Amplifiers in 225 to 400 MHz Military Communication Equipment.

Parametrics

mrf519 absolute maximum ratings: (1)IC: 2.0 A; (2)VCBO: 60 V; (3)VCEO: 33 V; (4)VEBO: 4.0 V; (5)PDISS: 30 W @ TC = 25℃; (6)TJ: -65 to +200℃; (7)TSTG: -65 to +150℃; (8)θJC: 6.0℃/W.

Features

mrf519 features: (1)PG = 10 dB Typical at 400 MHz; (2)Economical.280" Stud Package; (3)Omnigold Metalization System.

Diagrams

mrf519 block diagram
