Product Summary
The mrf627 is an NPN silicon RF power transistor. The ASI MRF627 is Designed for Class C, FM Land Mobile and FM Base Applications up to 470 MHz.
Parametrics
mrf627 absolute maximum ratings: (1)IC: 0.4 A; (2)VCBO: 28 V; (3)VCEO: 12 V; (4)VEBO: 4.0 V; (5)PDISS: 2.5 W @ TC = 25 °C; (6)TJ: -65 °C to +200 °C; (7)TSTG: -65 °C to +150 °C; (8)θJC: 70 °C/W.
Features
mrf627 features: (1)Common Emitter; (2)PG = 13 dB at 0.5 W/470 MHz; (3)Omnigold Metalization System.

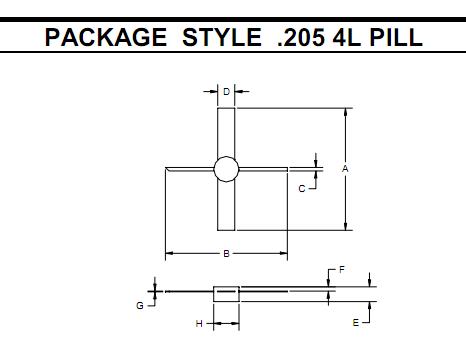

Diagrams

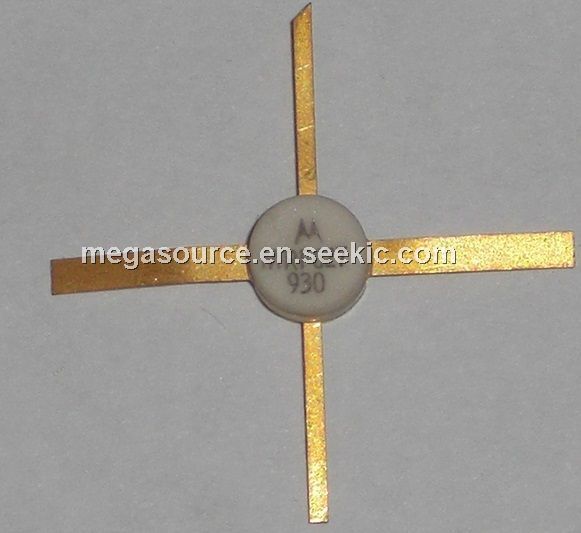

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF627 |
Other |
|
Data Sheet |
Negotiable |
|
||||
