Product Summary

The mrf6s27085h is an N-Channel Enhancement -Mode Lateral MOSFET. Designed for CDMA base station applications with frequencies from 2600 to 2700 MHz. Suitable for WiMAX, WiBro and multicarrier amplifier applications. To be used in Class AB and Class C for WLL applications.

Parametrics

mrf6s27085h absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5, +68 Vdc; (2)Gate-Source Voltage VGS: -0.5, +12 Vdc; (3)Storage Temperature Range Tstg: - 65 to +150 °C; (4)Case Operating Temperature TC: 150 °C; (5)Operating Junction Temperature TJ: 225 °C.

Features

mrf6s27085h features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Internally Matched for Ease of Use; (3)Qualified Up to a Maximum of 32 VDD Operation; (4)Integrated ESD Protection; (5)Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications; (6)RoHS Compliant; (7)In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.

Diagrams

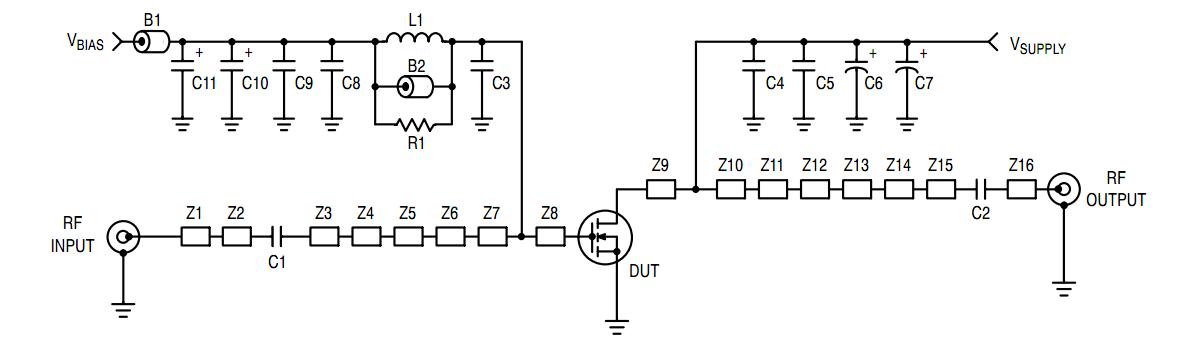

mrf6s27085h block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF6S27085HR3
MRF6S27085HR3
Freescale Semiconductor
Transistors RF MOSFET Power HV6 2700MHZ NCDMA NI780H
Data Sheet
0-188: $36.83
188-250: $36.83
MRF6S27085HR5
MRF6S27085HR5
Freescale Semiconductor
Transistors RF MOSFET Power HV6 2700MHZ NCDMA NI780H
Data Sheet
0-35: $40.03
35-50: $36.83
MRF6S27085HSR5
MRF6S27085HSR5
Freescale Semiconductor
Transistors RF MOSFET Power HV6 2700MHZ NCDMA NI780H
Data Sheet
0-35: $40.03
35-50: $36.83
MRF6S27085HSR3
MRF6S27085HSR3
Freescale Semiconductor
Transistors RF MOSFET Power HV6 2700MHZ NCDMA NI780H
Data Sheet
0-188: $36.83
188-250: $36.83
MRF6S27085HSR
MRF6S27085HSR
Other

Data Sheet
Negotiable
