Product Summary
The mrf7s38040 is an N-Channel Enhancement -Mode Lateral MOSFET designed for WiMAX base station applications with frequencies up to 3800 MHz. It is suitable for WiMAX, WiBro, BWA, and OFDM multicarrier Class AB and Class C amplifier applications.
Parametrics
mrf7s38040 absolute maximum ratings: (1)Drain-Source Voltage, VDS: -0.5, +65 Vdc; (2)Gate-Source Voltage, VGS: -6.0, +10 Vdc; (3)Operating Voltage, VDD: 32, +0 Vdc; (4)Storage Temperature Range, Tstg: - 65 to +150℃; (5)Case Operating Temperature, TC: 150℃; (6)Operating Junction Temperature, TJ: 225℃.
Features
mrf7s38040 features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Internally Matched for Ease of Use; (3)Integrated ESD Protection; (4)Greater Negative Gate-Source Voltage Range for Improved Class C Operation; (5)RoHS Compliant; (6)In Tape and Reel. R3 Suffix = 250 Units per 32 mm, 13 inch Reel.

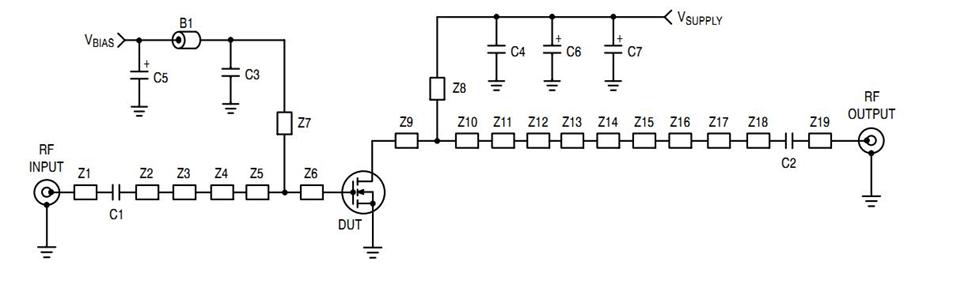

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF7S38040HR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power 3600MHZ 8W 28V |
Data Sheet |
Negotiable |
|
||||
|
MRF7S38040HR5 |
Freescale Semiconductor |
Transistors RF MOSFET Power 3600MHZ 8W 28V |
Data Sheet |
Negotiable |
|
||||
|
MRF7S38040HSR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power 3600MHZ 8W 30V |
Data Sheet |
Negotiable |
|
||||
|
MRF7S38040HSR5 |
Freescale Semiconductor |
Transistors RF MOSFET Power 3600MHZ 8W 30V |
Data Sheet |
Negotiable |
|
||||
