DS2502S

Add-Only Memory, 12.0V, 16.3 kbits, SOIC, ds2502s

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.81~0.83 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.83 / Piece
101 ~ 200 :	0.82 / Piece
201 ~ 300 :	0.81 / Piece

PartNumber:: DS2502S

Brand:: MITSUBISHI - MITSUBISHI | D/C:

Availability:: Supply Ability: 2000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-22

From Other Seller

Part Number:DS2502S
US $0.81 - 0.83
Quantity:

piece

Product Summary

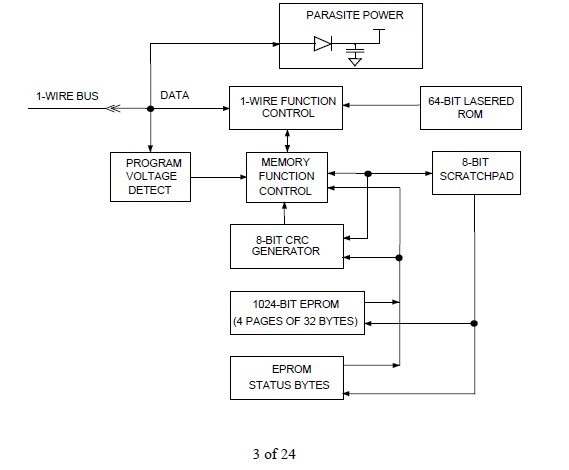

The ds2502s 1Kb Add-Only Memory identifies and stores relevant information about the product to which it is associated. The ds2502s consists of a factory-lasered registration number that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit Family Code (09h) plus 1Kb of EPROM which is user-programmable. The power to program and read the ds2502s is derived entirely from the 1-Wire communication line. The 48-bit serial number that is factory-lasered into each ds2502s provides a guaranteed unique identity which allows for absolute traceability.

Parametrics

ds2502s absolute maximum ratings: (1)Voltage on any Pin Relative to Ground: -0.5V to +12.0V; (2)Operating Temperature: -40℃ to +85℃; (3)Storage Temperature: -55℃ to +125℃; (4)Lead Temperature (TO-92, TSOC, SOT23-3, SOIC only, soldering 10s): +300℃.

Features

ds2502s features: (1)1024 bits Electrically Programmable Read Only Memory(EPROM) communicates with the economy of one signal plus ground; (2)Reduces control, address, data, power, and programming signals to a single data pin; (3)Directly connects to a single port pin of a microprocessor and communicates at up to 16.3 kbits per second; (4)8-bit family code specifies DS2502 communications requirements to reader; (5)Presence detector acknowledges when the reader first applies voltage; (6)Low cost TO-92, SFN, or 8-pin SO, SOT-23 (3-pin), TSOC and flip chip surface mount package.
